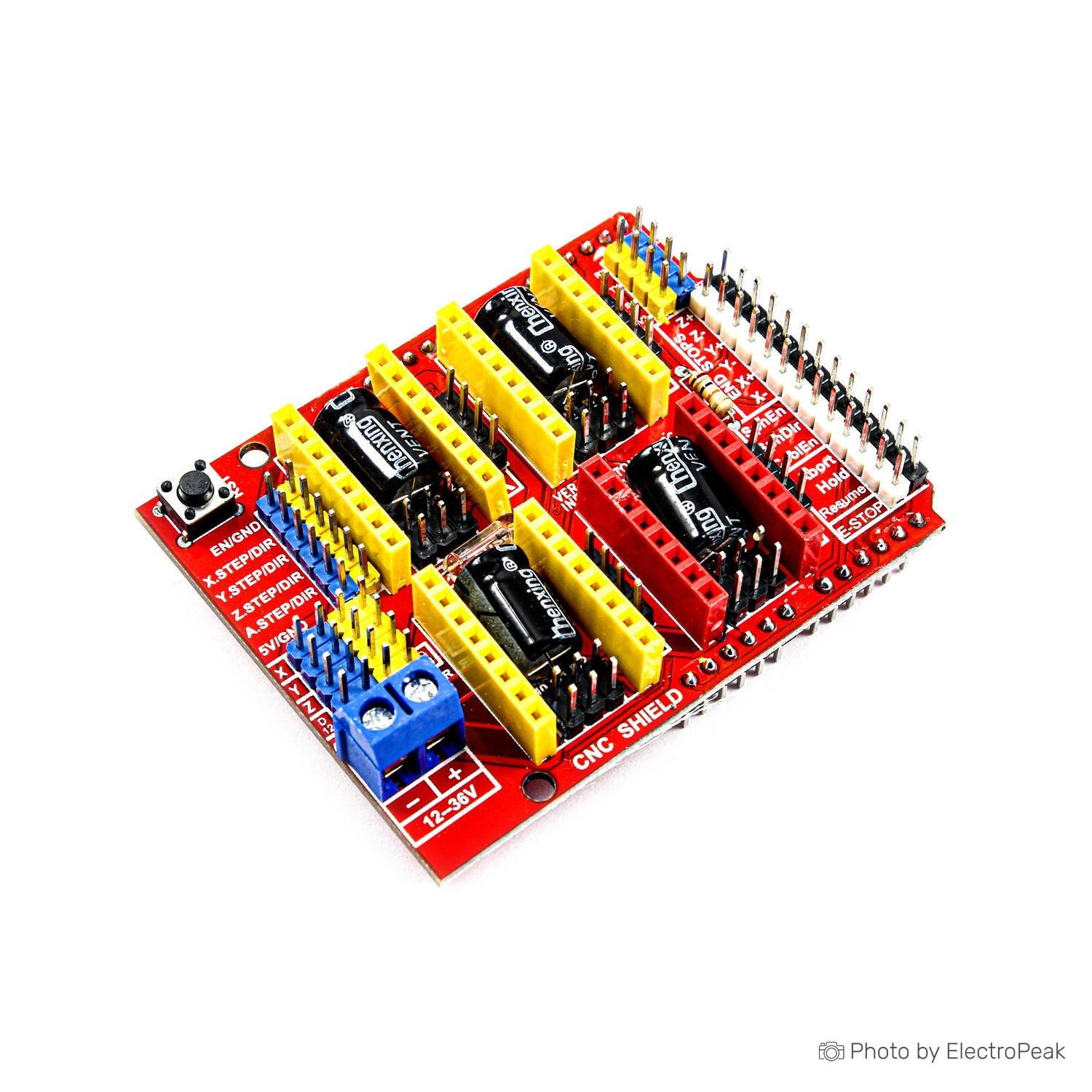

CNC SHIELD V3
RWF 10,000
The CNC Shield V3. 0 allows you to build a engraving machine, 3D printer, mini CNC and other similar devices using your Arduino
Product Description
. It is designed as a shield and can plug on top of an Arduino requiring no external connections and wiring. Controlling each step stepper motor requires only two IO pins on the Arduino.
Specifications
Specifications
- GRBL 0.9 compatible.(Open source firmware that runs on an arduino UNO that turns G-code commands into stepper signal
- Uses removable A4988 compatible stepper drivers.(A4988,DRV8825 and others)
- PWM Spindle and direction pins
- Axis support(X,Y,Z,A-can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins A4 and A3
- 2x End stops for each axis (6 in total)+one probe
- Coolant enable output
- Jumpers to set the micro stepping for the stepper drivers.(Some drivers like the DRV8825 can do up to 1/ micro-stepping
- Compact desing
- Stepper motors can be connected with 4 pin molex connectors or soldered in place
