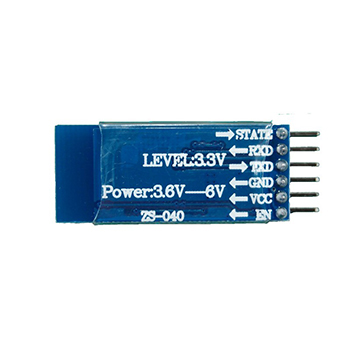

HC-05 Bluetooth Module
RWF 7,000
HC-05 Bluetooth Module is an easy to use Bluetooth SPP(Serial port protocol) module designed for transparent wireless serial connection setup,it,s communication is via serial communication which makes an easy way to interface with microcontroller or PC.
Product Description
HC-05 Bluetooth Module is an easy to use Bluetooth SPP(Serial port protocol) module designed for transparent wireless serial connection setup,it,s communication is via serial communication which makes an easy way to interface with microcontroller or PC.
Specifications
Applications
Specifications
- Serial Bluetooth module for arduino and on other microcontroller
- Operating voltage:4V to 6V
- Operating current:30mA
- Range:100m
- Works with serial communication(USART) and TTL compatible
- Follows IEEE 802.15.1 standardized protocol
- Uses frequency-Hopping spread Spectrum(FHSS)
- Can operate in master, slave or Master/slave mode
- Can be easily interfaced with laptop or mobile phone with Bluetooth
- Supported baud rate:9600,1.9200,38400,57600,1.1.5200,230400,460800
Applications
- Wireless communication between two microcontrollers
- Communicate with laptop, desktop and mobile phone
- Data logging application
- Consumer applications
- Wireless Robot
- Home automation
