RFID Reader Module 13.56Mhz

RWF 6,500 RWF 6,000

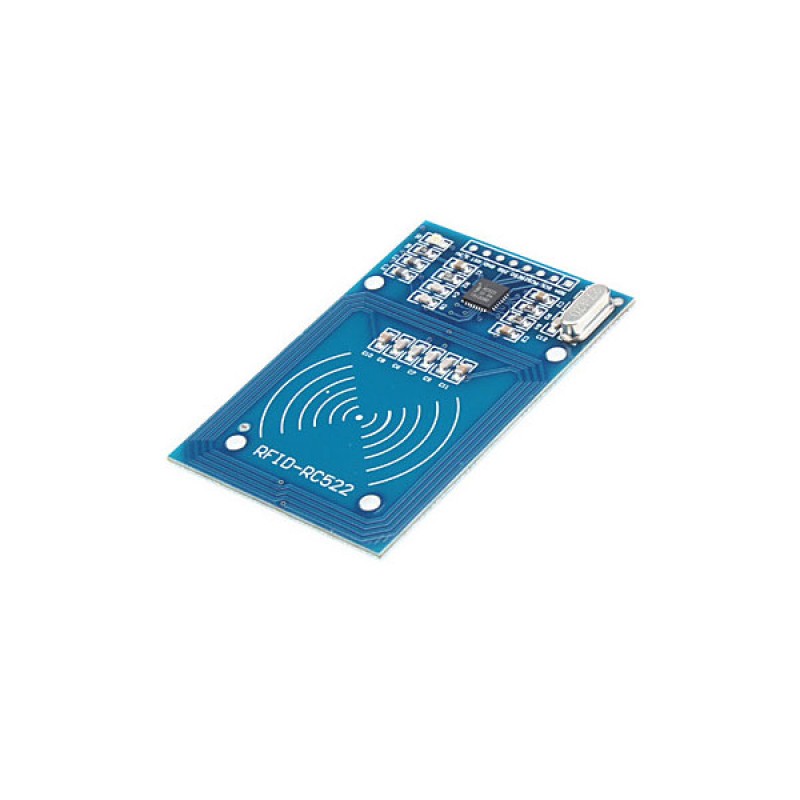

The module typically features a built-in antenna for communication with compatible RFID tags, such as MIFARE, and outputs data via a serial interface (UART or SPI) for easy integration with microcontrollers like Arduino or Raspberry Pi. It is known for its reliable read/write performance, low power consumption, and ease of use, making it an excellent choice for both beginner and advanced RFID projects.


Product Description

Radio-frequency identification (RFID) uses electromagnetic fields to automatically identify, and track tags attached to objects. The tags contain electronically stored information. Two types of Tags: Passive tags and Active tags. Passive tags collect energy from a nearby RFID reader radio waves. Active tags have a local power source and may operate hundreds of meters from the RFID reader.


Technical parameters

  • Current :13-26mA / DC 3.3V
  • Idle Current :10-13mA / DC 3.3V
  • Sleep current: <80uA
  • Peak current: <30mA
  • Operating Frequency: 13.56MHz
  • Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
  • Product Physical Characteristics: Dimensions: 40mm  60mm
  • Environmental Operating temperature: -20-80 degrees Celsius
  • Environment Storage temperature: -40-85 degrees Celsius
  • Relative Humidity: 5% -95%


Applications

  • Access management
  • Tracking of goods
  • Tracking of persons and animals
  • Toll collection and contactless payment
  • Machine readable travel documents
  • Smartdust (for massively distributed sensor networks)
  • Airport baggage tracking logistics
  • Timing sporting events
  • Tracking and billing processes

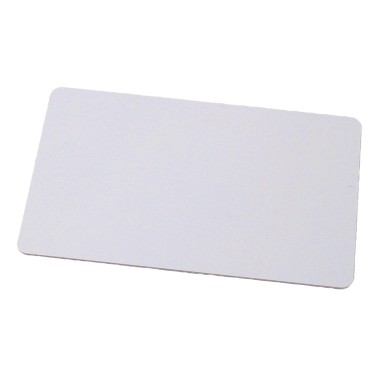

Package include: 1 x RFID Module 1 x standard blank card S50 1 x S50 shaped card one (ring shape) 1 x straight row and curved row of a pin
