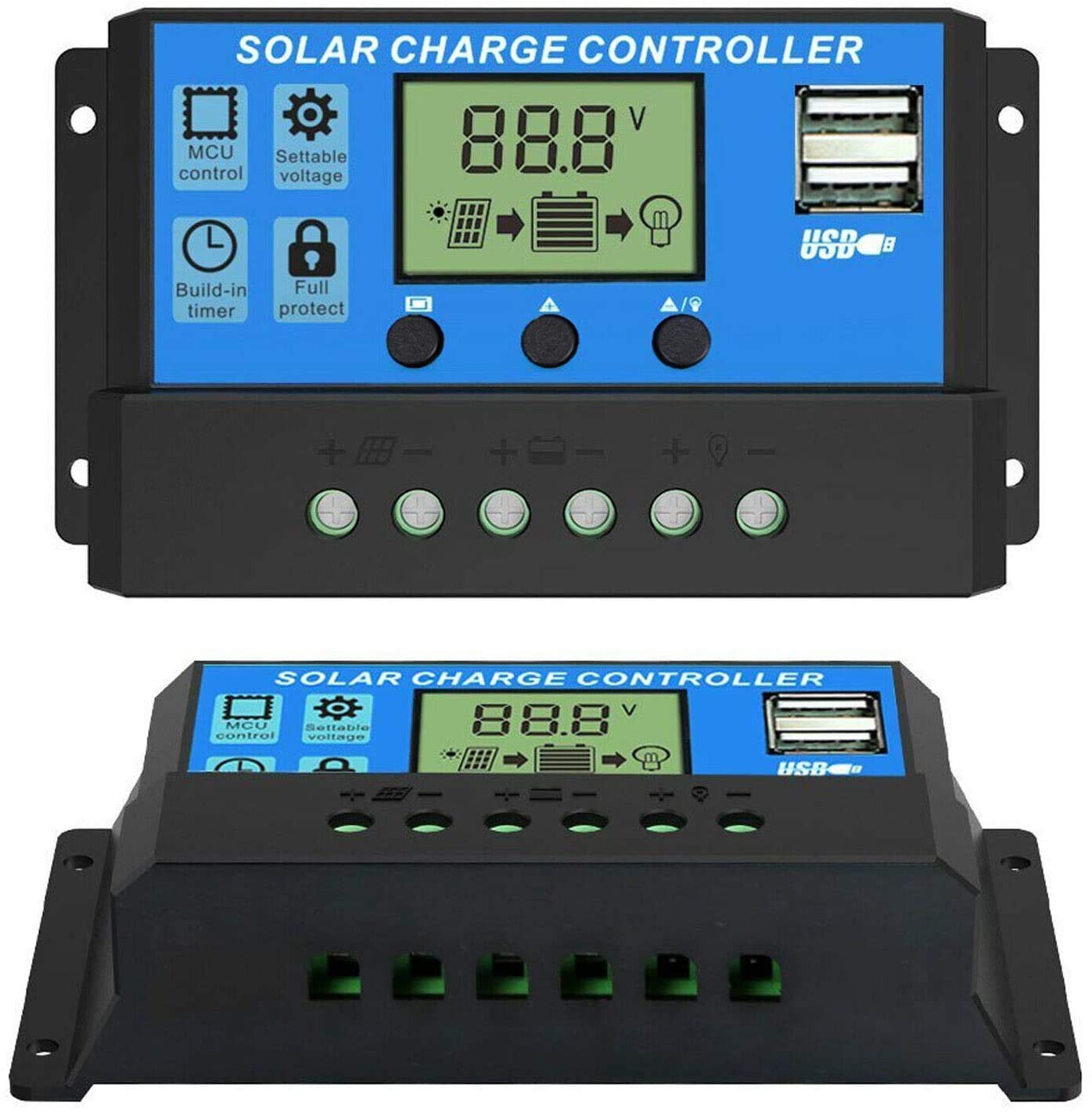

12V-24V 10A Intelligent LCD solar controller is a digital PWM solar charger controller for the lead-acid batteries connected to a solar power system.when connected to the battery,this charge controller automatically detects the battery voltage from 12V-24V.This charge controller has some advanced features like built in short circuit protection,open-circuit protection,reverse voltage protection,overload protection which makes it deal for grip power systems.

Features:

• 1.Build-in industrial micro controller.


• 2.Big LCD display,all adjustable parameter.


• 3.Fully 4-stage PWM charge management.


• 4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.


• 5.Dual mosfet Reverse current protection ,low heat production.

Display:

MENU:switch between different display,or to enter/exit setting by long press.

UP: press to increase value.

DOWN:press to decrease value.

MODEL	IC charger PWM N1210	ICharger PWM N1220	ICharger PWM N1230
Battery Voltage	12V 24V Auto
Charging Current	10A	20A	30A
Discharging Current	10A	10A	10A
Max Solar input	50V(for 24V battery) 25V(for 12V battery)
Equalization	14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge	13.7V(default,adjustable)
Discharge stop	10.7V(default,adjustable)
Discharge reconnect	12.6V(default,adjustable)
USB output	5V/3A
Self-consume	<10mA
Operating temperature	-35�C~+60�C
