Smart Switch Basic, 16A WiFi Wireless Smart DIY Switch can be used to make any device or appliance that uses a mains input of 230V Smart. Simply, �Wire, Configure and Play�.

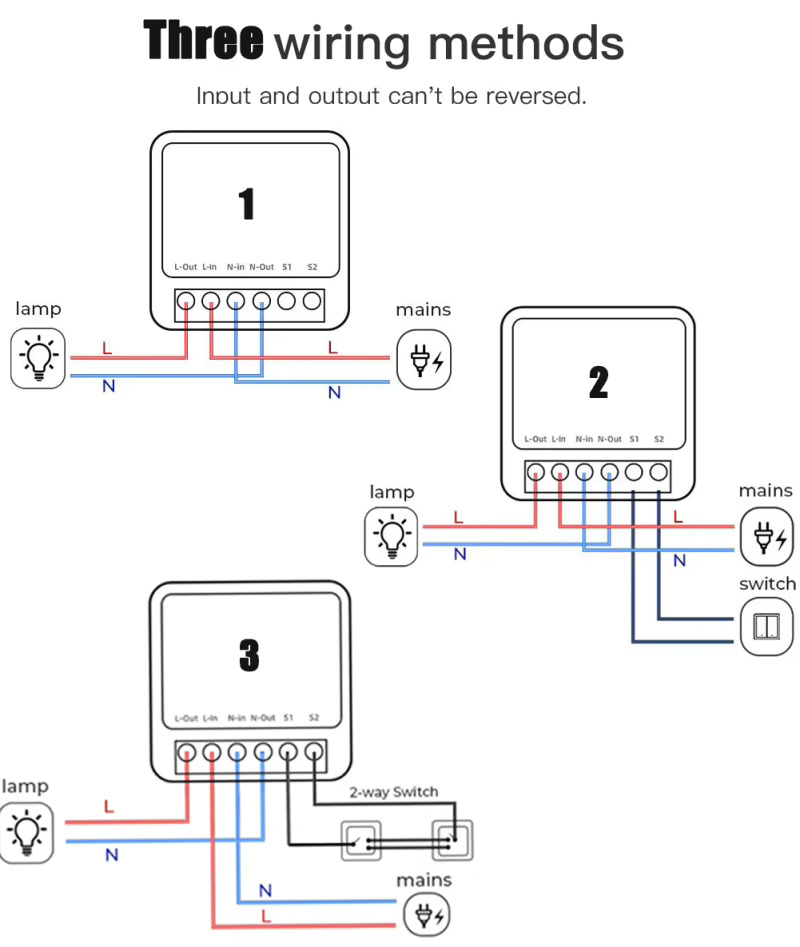

The unit also includes a �Manual Switch Override� feature if you require both Smart and Manual switch. The wiring of this feature is optional and means that both the smart and manual switching will override each other. See additional images for wiring diagram.

Simply, �Wire, Configure and Play�.

Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.

Specifications:

• Name: Mini WiFi smart switch


• Input: AC 100-240V 50/60hz


• Output: AC 100-240V 50/60hz


• Operating system: Android 5.0 & IOS 10) or later


• Frequency standard: WiFi (802.11 b/gi/n 2.4GHz)


• Current <16a


• Material: PC


• Size: 42*42*20mm

Description:

APP: eWeLink or tuya, smart life

1. [Refit non-smart appliances or equipment into smart devices] Such as refitting a desk lamp into a smart desk lamp, and mobile phone can control the switch of the light. To turn the downlight into a smart downlight, you only need to connect a smart switch module to the switch, and then Alexa/Google assistant can control the light switch.

2. [Mobile APP control]Control the device's power on and off, timing, countdown and other functions through the mobile phone. As long as the mobile phone has a network, you can control the switch module at home globally.

3. [Voice control]Support voice assistants such as Tmall Genie, Alexa, Google Home, and realize functions such as switches; "Alexa, turn on the kitchen lights." You can turn on the lights in one sentence and enjoy a convenient smart life.

4. [Timing]You can control the switch, timing, countdown and other functions of the device through your mobile phone. This can be ordered: turn off the lights in the living room after 2 hours. 18:15 Turn off the oven. Turn on the boiler at 21:00. You can also time the device when you are not at home. (APP: eWeLink)

5. [Group control]Group the lights to achieve unified control (simultaneous switching, timing, etc.);

6. [The Internet of Everything]Through settings, it can be linked with other smart scenes to make life smarter; for example, set the home scene: automatically turn on the living room lights, TV, and air conditioner.

7. [Sharing and security] The main account can be shared with other family members, and the functions and settings are completely retained and copied; security: once the main account adds a light, the light will be and other users can no longer find and add; it needs to be actively shared before others can use it it.

8. [RM2.4G Remote control] Pairing with RM2.4G remote control, no need phone

Package Included:

1*mini smart switch module,

1*User Manual
