1N5404 Rectifier Diode

RWF 300

The 1N5404 is a power diode because of its high forward current and reverse voltage with a power dissipation of 6.25W.


Product Description

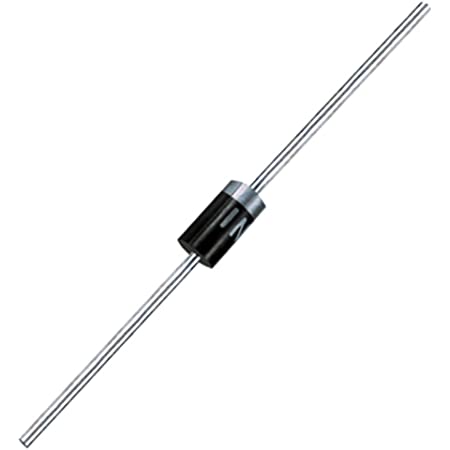

A diode is a device which allows current flow through only one direction. That is the current should always flow from the Anode to cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above.

Specifications

  • Average forward current is 3A

  • Forward Voltage drop is 1.2V

  • Non-repetitive Peak current is 200A

  • Peak Reverse current is 10uA.

  • Repetitive reverse voltage is 400V

  • Maximum RMS Voltage is 280V


Applications



  • Can be used to prevent reverse polarity problem

  • HV supplies

  • Half Wave and Full Wave rectifiers

  • Used as a protection device

  • Current flow regulators
