Barcode Scanner Module, 1D/2D Codes Reader

Available at SoftTech Supply - Your trusted electronics shop in Kigali, Rwanda

Barcode Scanner Module, 1D/2D Codes Reader - STS Electronic Components Kigali

Barcode Scanner Module, 1D/2D Codes Reader

Price:

RWF 80,000
The Barcode Scanner Module is a versatile device capable of reading both 1D and 2D barcodes, including QR codes, UPC, and other popular formats. It features fast and accurate scanning, making it ideal for applications such as inventory management, point-of-sale systems, and data tracking. With easy integration into microcontroller projects via UART or USB interfaces, this module is suitable for both professional and DIY use. Compact and efficient, it provides reliable performance in various environments, offering flexibility for businesses and hobbyists alike.
In Stock - Ready to Ship
Quality Guaranteed
Fast Delivery
Expert Support
Easy Returns

Need help or have questions about this product?

Contact STS Support →

Product Description

This is a small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately.

Through the onboard USB and UART interface, it can be directly plugged into a computer or be easily integrated to kinds of devices due to its small form factor.

Specifications

  • Operating voltage: 5V

  • Operating current: 135mA (scanning), 58mA (standby), 2mA (sleep)

  • Operating temperature: 0�C~60�C

  • Operating humidity: 5%~95% (Non-condensing)

  • Communication interface: UART, USB

  • Decodes 1D codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS)

  • Decodes 2D codes: QR code, Data Matrix, PDF417

  • Light source: white

  • Scan angels: roll 360�, skew �65�, pitch �60�

  • Field of view: 28� (horizontal), 21.5� (vertical)

  • Dimension: 53.3mm x 21.4mm


Features

  • Easy to use, requires no knowledge of image recognition

  • Decodes various common 1D/2D codes such as Barcode, QR code etc.

  • Onboard micro-USB and UART serial port, allows to connect with computers or embedded devices

  • Configurable via scanning 'configuration code'

  • Onboard light source, works in the dark




Development Resources

www.waveshare.com/wiki/Barcode_Scanner_Module



Why Buy from SoftTech Supply?

  • Genuine electronic components from trusted suppliers
  • Competitive prices on Arduino, Raspberry Pi, sensors & more
  • Fast delivery across Kigali and Rwanda
  • Expert technical support and project consultation
  • Easy returns and quality guarantee

Related Products

Sale! 16A Tuya Smart WiFi Switch Power Metering | SoftTech Supply

16A Tuya Smart WiFi Switch Power Metering

RWF 25,000 RWF 14,500

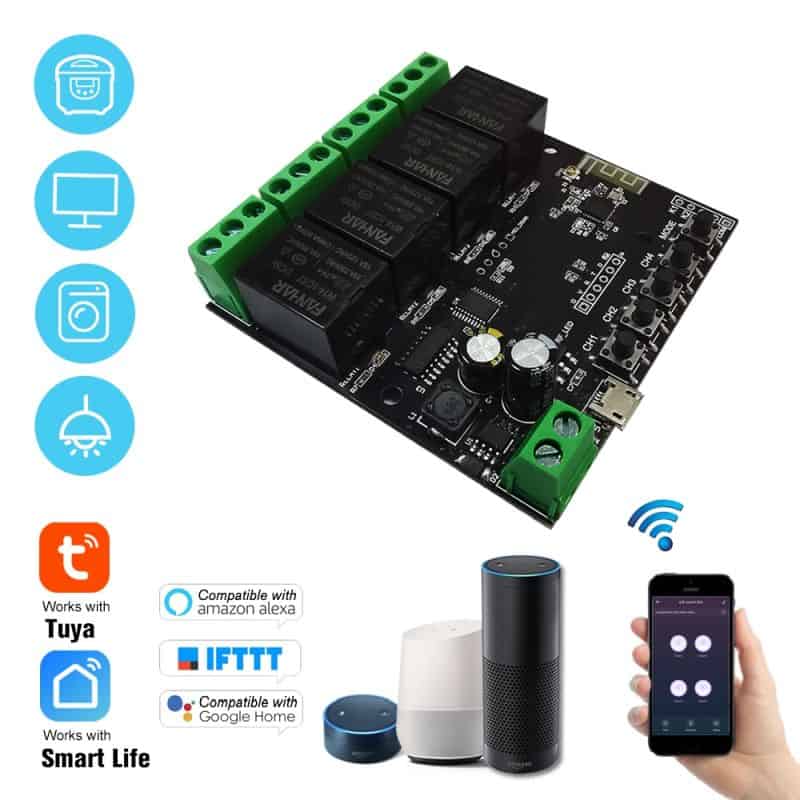

Tuya Wifi Switch 4CH Wireless DIY Smart Switch Module Smart life | SoftTech Supply
