CC2530F256 Zigbee UART Wireless Core Development Board with Serial Port

Available at SoftTech Supply - Your trusted electronics shop in Kigali, Rwanda

CC2530F256 Zigbee UART Wireless Core Development Board with Serial Port - STS Electronic Components Kigali
CC2530F256 Zigbee UART Wireless Core Development Board with Serial Port view 1
CC2530F256 Zigbee UART Wireless Core Development Board with Serial Port view 2

CC2530F256 Zigbee UART Wireless Core Development Board with Serial Port

Price:

RWF 17,000
The CC2530F256 Zigbee UART Wireless Core Development Board is an advanced platform designed for developing Zigbee-based wireless applications. Powered by the CC2530F256 chip, it features 256KB flash memory and supports Zigbee 802.15.4 communication. This board provides a serial port interface (UART) for easy integration with microcontrollers, allowing developers to build wireless sensor networks, home automation, and IoT solutions. With its flexible design and robust wireless communication capabilities, the CC2530F256 board is an ideal choice for creating reliable and scalable Zigbee-based systems.
In Stock - Ready to Ship
Quality Guaranteed
Fast Delivery
Expert Support
Easy Returns

Need help or have questions about this product?

Contact STS Support →

Product Description

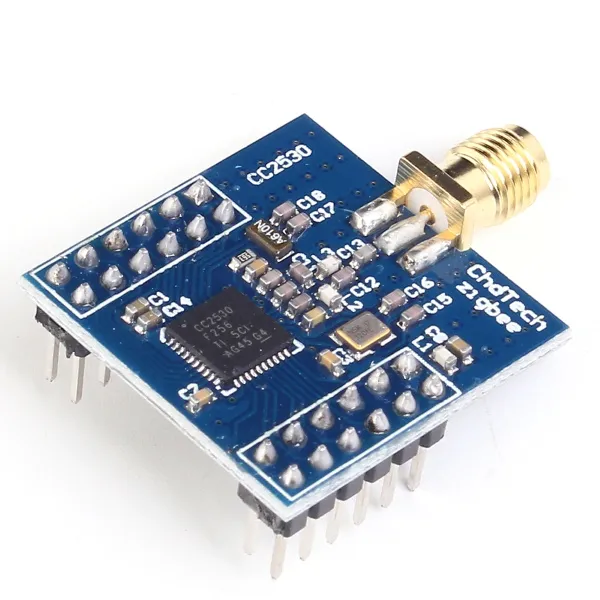

This is a Wireless Core Development Board based on CC2530, which supports Zigbee Protocol. The Module has a 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver, with Excellent Receiver Sensitivity and Robustness to Interference this module has programmable output power up to 4.5 dBm. Made with very few external components, this module supports 2.4-GHz IEEE 802.15.4 systems.

Specification

  • 4-GHz IEEE 802.15.4 Compliant RF Transceiver.

  • Excellent Receiver Sensitivity and Robustness to Interference.

  • Programmable Output Power Up to 4.5 dBm.

  • Very Few External Components

  • 4-GHz IEEE 802.15.4 Systems

  • VCC:3.3v

  • PO3:Tx

  • PO2:Rx

  • P21:Debug data

  • P22:Debug clock

  • RST:Reset


Applications:


  • Home/Building Automation.

  • Lighting Systems.

  • Industrial Control and Monitoring.

  • Low-Power Wireless Sensor Networks.

  • Consumer Electronics.

  • Health Care.
