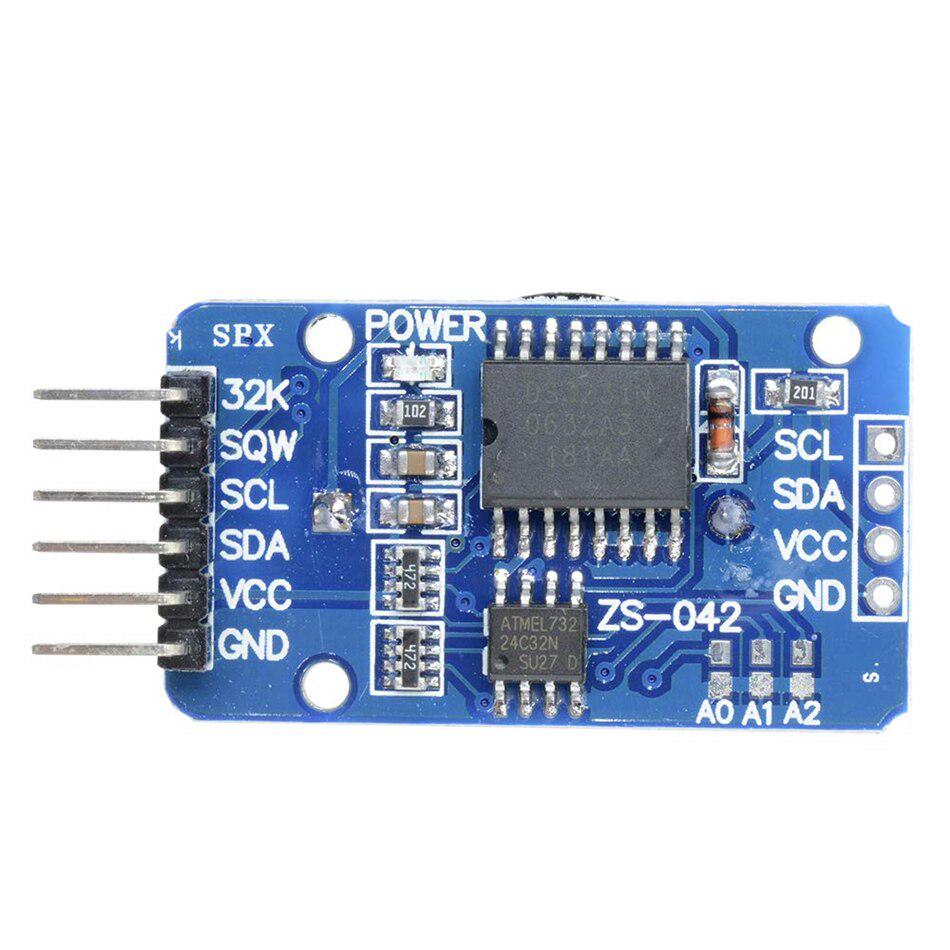

DS3231 IIC Real Time Clock RTC Module

RWF 4,000

DS3231 AT24C32 is a low cost extremely accurate I2C module real time clock (RTC) with an integrated temperature-compensated crystal oscillator.


Product Description

DS3231 AT24C32 is a low cost extremely accurate I2C module real time clock (RTC) with an integrated temperature-compensated crystal oscillator.

Specifications

  • Size:38mm(Length)*22mm(W)*14mm(height)

  • Weight:8g

  • Operating Voltage:3.3-5.5V

  • Chip: high-precision clock DS323

  • Accuracy :0-40 ?range, precision 2 ppm
    Memory chip: AT24C32 (storage capacity 32k)
    IIC interface, the maximum transmission speed of 400KHz (5V)
    Can be cascaded with other IIC devices, 24 C 32 A0/A1/A2, the default address is 0x57
    Battery LIR2032:Not incuded
    Example for wiring (Arduino Uno r3):
    SCL ? A5
    SDA ? A4
    VCC ? 5V
    GND ? GND




Application

  • Data Loggers

  • GPS Module

  • Power Motors


Package include

1x DS3231 AT24C32 IIC Module Precision RTC Module
