NodeMCU V3 Features

• Open-source


• Arduino-like hardware


• Status LED


• MicroUSB port


• Reset/Flash buttons


• Interactive and Programmable


• Low cost


• ESP8266 with inbuilt wifi


• USB to UART converter


• GPIO pins

Projects and Applications

• Internet Smoked Alarm


• VR Tracker


• Octopod


• Serial Port Monitor


• ESP Lamp


• Incubator Controller


• IoT home automation


• Security Alarms

Power input:

1. Motor power supply (VM): 4.5V ~ 36V, can be powered separately


2. Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately


3. Module provides short-circuit sub (short the VM and VIN), you can easily use one power (must 4.5V ~ 9V) while completing motor drive and control


4. Logic Operating current Iss: ?60mA (Vi = L), ?22mA (Vi = H)


5. Drive part of the work current Io: ?1.2A


6. Maximum power dissipation: 4W


7. Control signal input level: High: 2.3V?VIH?VIN; Low: -0.3V?VIL?1.5V


8. Drive Type: Dual high-power H-bridge driver


9. ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)


10. Expand two-way motor-driven, two-way direct drive motor


11. Onboard power switch


12. Motor power, control power separation; In the experiment, by short-circuiting block the merger,


13. the VIN and VM short, while power to the motor and the control board

Package include:

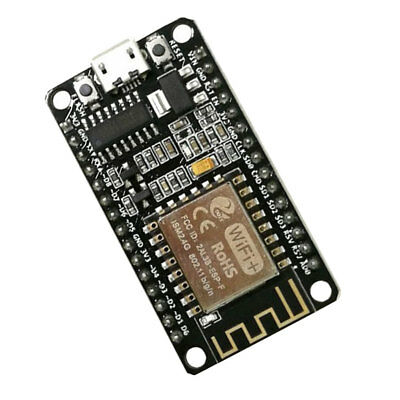

1 x ESP8266 NodeMCU

1x USB cable 1M
