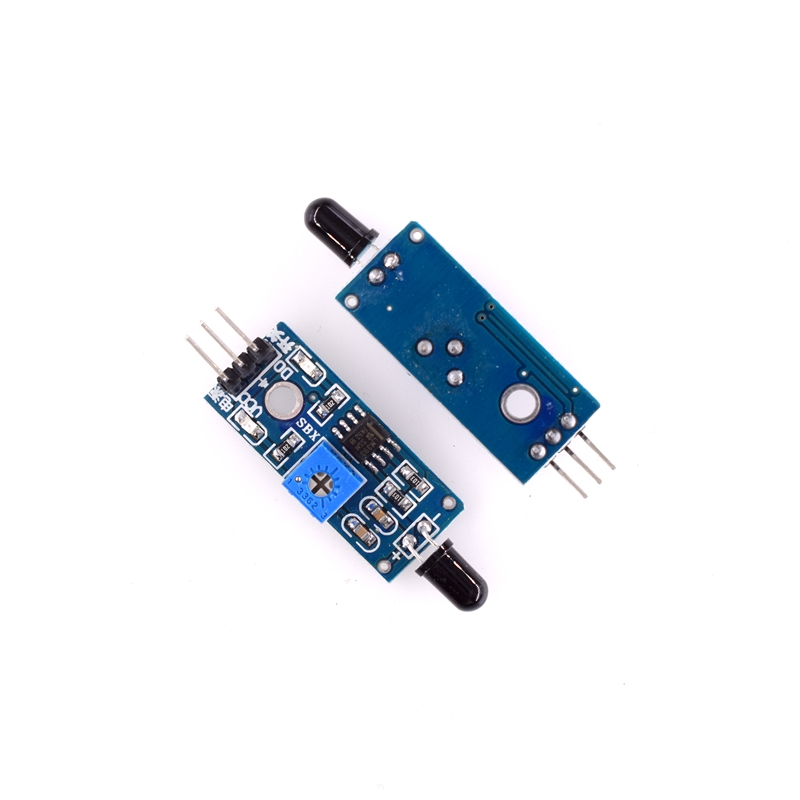

The Flame Sensor Module is a highly sensitive and reliable device used to detect open flames by identifying light in the infrared spectrum. This module is designed to provide a digital output when a flame is detected, making it an ideal component for various applications, including fire detection systems, robotics, and industrial automation. With its adjustable sensitivity and compact design, this module is a popular choice among hobbyists and professionals alike.

The module's operating principle is based on the YG1006 photo transistor, which detects light in the infrared spectrum, typically emitted by open flames. The detected signal is then processed by the LM393 comparator chip, providing a stable digital output. The module also features an LED light indicator, which provides visual feedback for power and output status.

Key features of the Flame Sensor Module include:

• Operating Voltage: 3.3V-5V


• Operating Current: 15mA


• Comparator Chip: LM393


• Sensor Type: YG1006 Photo Transistor


• Sensitivity: Adjustable via potentiometer


• Output type: Digital output/Digital and Analog output


• LED Light indicator: Power (red) and output (Green)


• Spectrum range: 760nm ~ 1100nm


• Detection angle: 0 ° ~ 60 degree


• Operating temperature: -25 ° ~ 85 °


• PCB Size: 3cm X 1.6cm

Application

• Fire detection systems


• Robotics and robotic vision


• Industrial automation and control


• Security systems


• Home automation
