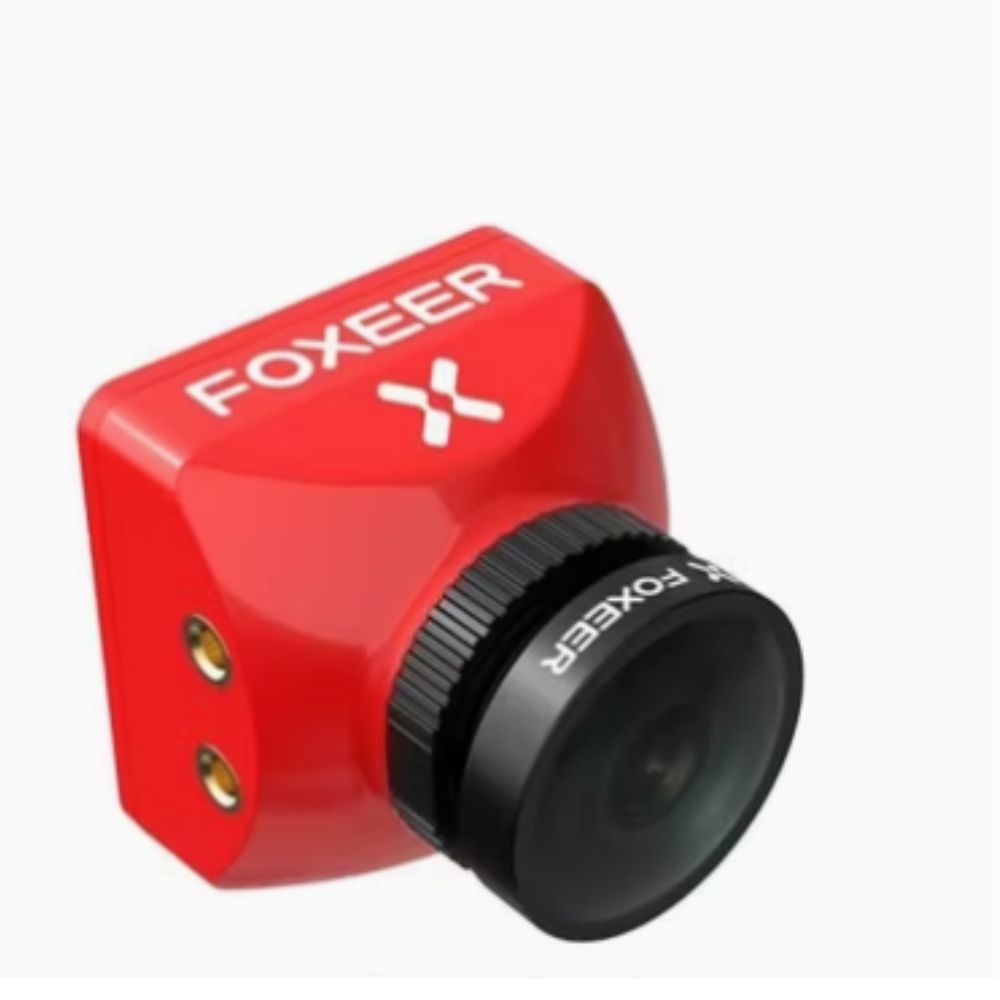

Foxeer T‑Rex Mini 1500TVL 6ms Low Latency Super WDR FPV Thermal Imaging Drone Camera combines ultra‑low latency video transmission with high‑resolution thermal imaging, delivering crystal‑clear situational awareness for competitive racing, inspection, and search‑and‑rescue operations. Its 1500TVL sensor and 6ms response time provide real‑time feedback, while Super Wide Dynamic Range (WDR) ensures detail retention in extreme contrast environments.

Specifications

• Resolution: 1500 TVL (approx. 1280×720)


• Latency: As low as 2 ms (6 ms response time)


• Sensor Type: Thermal microbolometer with Super WDR


• Field of View: 120° diagonal


• Video Output: Analog FPV (NTSC/PAL selectable)


• Power Supply: 5 V / 2 A (micro‑USB)


• Weight: 45 g (including cable)


• Operating Temperature: –20 °C to +60 °C


• Connector: 3‑pin JST for video and power


• Mounting: Adjustable 2‑hole bracket for gimbal or fixed mounts

Applications

• FPV racing drones where split‑second decisions are critical


• Industrial inspections of pipelines, power lines, and solar panels


• Search‑and‑rescue missions in low‑visibility or night conditions


• Wildlife monitoring and conservation surveys


• Security and perimeter surveillance for rapid threat detection
