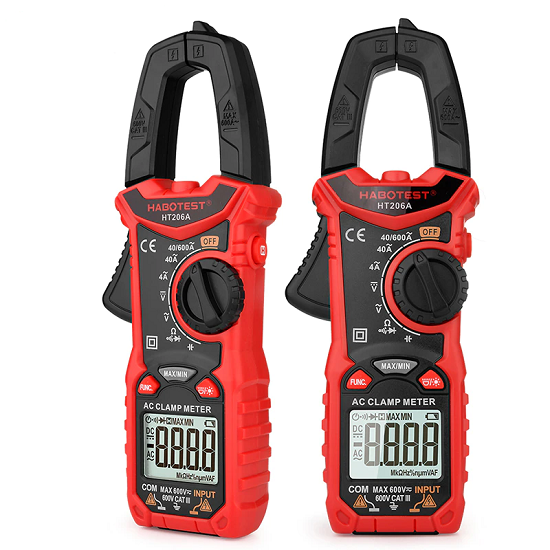

Product Description
Made of high-quality materials, it is durable, very practical, wear-resistant and stable in performance.
It features hold result and max value buttons that makes it quicker and easier to use.
A two-wire display that displays AC voltage/current and frequency or Celsius and Fahrenheit on the screen.
LCD Display: Ultra-clear display, clear reading, easy to read the values when you operate.
Hold and backlight button:The data hold button and backlight button are on the side of the meter. A short press will hold the data for you, and a long press will turn the backlight on. It is convenient for one-handed operation when measuring.
Avoid hazardous situations by using the convenient clamp to safely measure AC currents without having to strip a cord or break a circuit.
Auto power off: no operation in 15 minutes. The instrument will shut down automatically to save battery energy.
Multifunctional: Accurate AC/DC voltage, AC/DC current, frequency, duty cycle, capacitance, resistance, temperature, diode, continuity, NCV, etc.
Wide range of applications, ideal for home and professional use, automotive, home and industrial electrical troubleshooting.
It features hold result and max value buttons that makes it quicker and easier to use.
A two-wire display that displays AC voltage/current and frequency or Celsius and Fahrenheit on the screen.
LCD Display: Ultra-clear display, clear reading, easy to read the values when you operate.
Hold and backlight button:The data hold button and backlight button are on the side of the meter. A short press will hold the data for you, and a long press will turn the backlight on. It is convenient for one-handed operation when measuring.
Avoid hazardous situations by using the convenient clamp to safely measure AC currents without having to strip a cord or break a circuit.
Auto power off: no operation in 15 minutes. The instrument will shut down automatically to save battery energy.
Multifunctional: Accurate AC/DC voltage, AC/DC current, frequency, duty cycle, capacitance, resistance, temperature, diode, continuity, NCV, etc.
Wide range of applications, ideal for home and professional use, automotive, home and industrial electrical troubleshooting.
- Specifications:
Brand Name: HABOTEST
Color: Red
Model: HT206A/HT206B/HT206D(optional)
Material: ABS
Display: LCD Display
Jaw Opening: 25cm
DC voltage: 600mV/6V/60V/600V(�0.5%reading+5)
AC voltage: 6V/60V/600V(�1.0%reading+5)
AC current: 6A/60A/600A(�2.5%reading+8)
Resistance: 600?/6K?/60K?/600K?/6M?/60M?(�1.0%reading+5)
Duty cycle: 1-99%
Frequency (Hz): 10Hz~10MHZ
Maximum count: 6000
Temperature: -40~1000? / -40?1832?
Power Supply: 2* 1.5V AAA Batteries (Not Included)
Operating Temperature & Humidity: 0-40? (?80%RH ,?10? non-condensing)
Storage Temperature & Humidit: -10-60? (?70%RH,remove the battery)
Voltage between terminals and earth ground: 600V
Over range indication: it displays "OL"
Continuity: orange backlight onHT206A
Item weight: 190g/0.418lb
Item size: 19.3*7.3*3.4cm / 7.6*2.9*1.3in
Package weight: 377g/0.83lb
Package size: 22.5*11.5*4.5cm/8.86*4.53*1.77in
