Products Description






Product name

Innovation Storm



Model No.

JMC-NY-2508E



Function

1. In conjunction with the software, camera module can be:
(1)Image Recognition
(2)Face Recognition
(3)QR code Virtual Recognition
(4)Virtual Reality
2. Support 8 kinds of contactless gesture detection, with gesture recognition.



Programming software

1. RoboExp software flow chart programming
2. Python and C language code programming
3. Artificial intelligence teaching platform ZMROBO2.0/ 3.0 programming



Application scene

1. Competition
2. School studying
3. Preschool children's development intelligence
4. Training center
5. Parent-child education



Built-in battery

7.4V 2000mAh lithium battery



Features

1. Support multiple hardware platforms such as PC, PAD and mobile phone.
2. Mobile phone APP support camera AI algorithm, face recognition and AR two-dimensional code.
3. 8 sensor ports (digital/analog multiplexing) and 8 motor ports

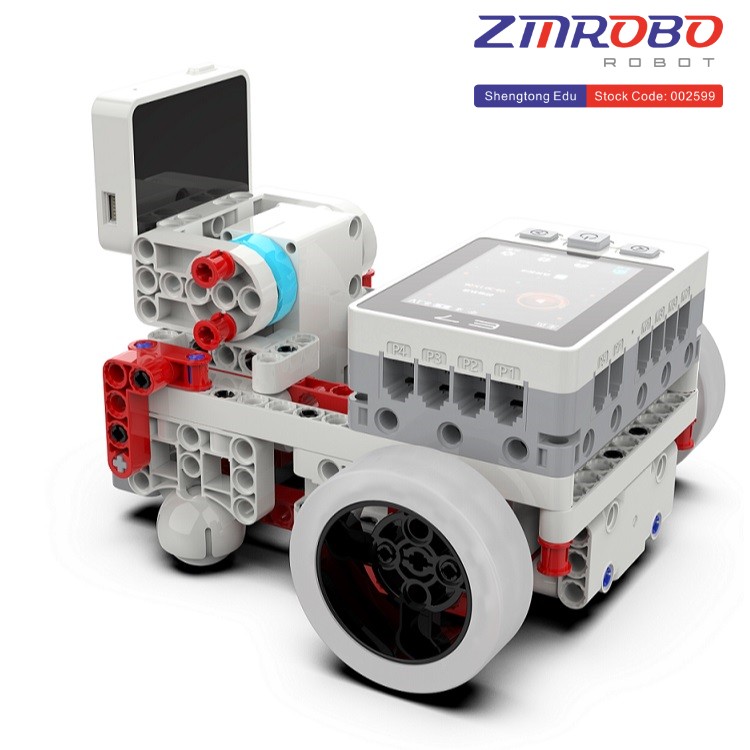

4. Typical building examples:
car,















Function of electric components




Color Light

Can emit multiple colors;
The default state can generate 7 color lights;
The outer translucent shell makes the light softer.



Grayscale Sensor

Used to detect the darkness of the object's color;
A device in which an optical signal is converted into an electrical signal;
Can distinguish between black and white.



Touch Sensor

Used to detect impact and extrusion;
Can be used as a trigger switch;
The front cross hole can be used to mount the bumper.



Color Sensor

Used to read the RGB color values;
6 colors can be recognized by default;
The value can be read by the light reflected by the light tube independent of the illumination.



Ultrasonic Sensor

Used to detect the distance from an object;
The effective range of detection is 7-150cm;
The auxiliary light changes color according to the detection distance.



Large Motor

Rotating speed: 190-200RPM
Operating torque: 21Ncm
Stall torque: 42Ncm



Medium Motor

Rotating speed: 300-310RPM
Operating torque: 10Ncm
Stall torque: 15Ncm



Camera Module

Built-in wifi hotspot;
Support 360p resolution video;
Graphic data such as a face and a two-dimensional code can be recognized by the APP;
Support remote control.





The feature of E7 RCU
High-performance domestic chip,reliable in every lesson. -Equipped with a quad-core CPU (with GPU + NPU) for powerful and smooth Al performance -4-inch touch display for real-time data and program visualization -Built-in Wi-Fi & Bluetooth for wireless connectivity; Integrated microphone and speaker for voice interaction -12 expansion ports can connect ZMRoBO sensors and motors for flexible building and extension.
