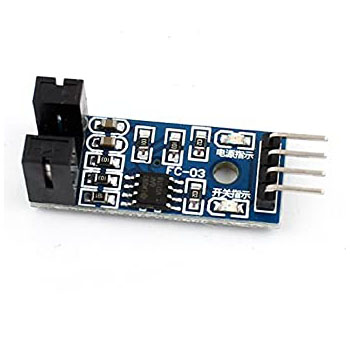

LM393 Motor Speed Sensor Module
RWF 3,900.00
RWF 3,500.00
The LM393 Motor Speed Sensor Module is a sensor designed to measure the rotational speed of motors. It uses an LM393 comparator chip to process the signals generated by a rotating motor, providing accurate speed readings. The module works by detecting changes in the magnetic field produced by the motor's rotor or other moving components, converting these variations into digital pulses. These pulses are then counted and processed to calculate the motor's speed in revolutions per minute (RPM). It is commonly used in motor control systems, robotics, and automation projects to monitor motor performance and adjust settings for optimal efficiency. The module operates with a wide voltage range, making it versatile for various applications.
Product Description
- Using imported groove optical coupling sensor, width 5mm.
- It have the output state light, if output high level, the lights are off. if output low level ,it on.
- If it covered, it will output high level; otherwise it output low level.
- Good signal and waveform, with strong driving ability for more than 15mA.
- The working voltage of 3.3V to 5V.
- Output: digital switch output (0 and 1).
- Equipped with a fixed bolt hole, easily install.
- Small board PCB size: 3.2 cm x 1.4 cm.
- Use the LM393 wide voltage compar
Specifications
- VCC Connect the positive 3.3 5 v power supply
- GND Connect power negative
- DO TTL switch signal output
- AO This module does not work
