MAX30102 Heart Rate Oxygen Pulse Sensor

Available at SoftTech Supply - Your trusted electronics shop in Kigali, Rwanda

MAX30102 Heart Rate Oxygen Pulse Sensor - STS Electronic Components Kigali
MAX30102 Heart Rate Oxygen Pulse Sensor view 1

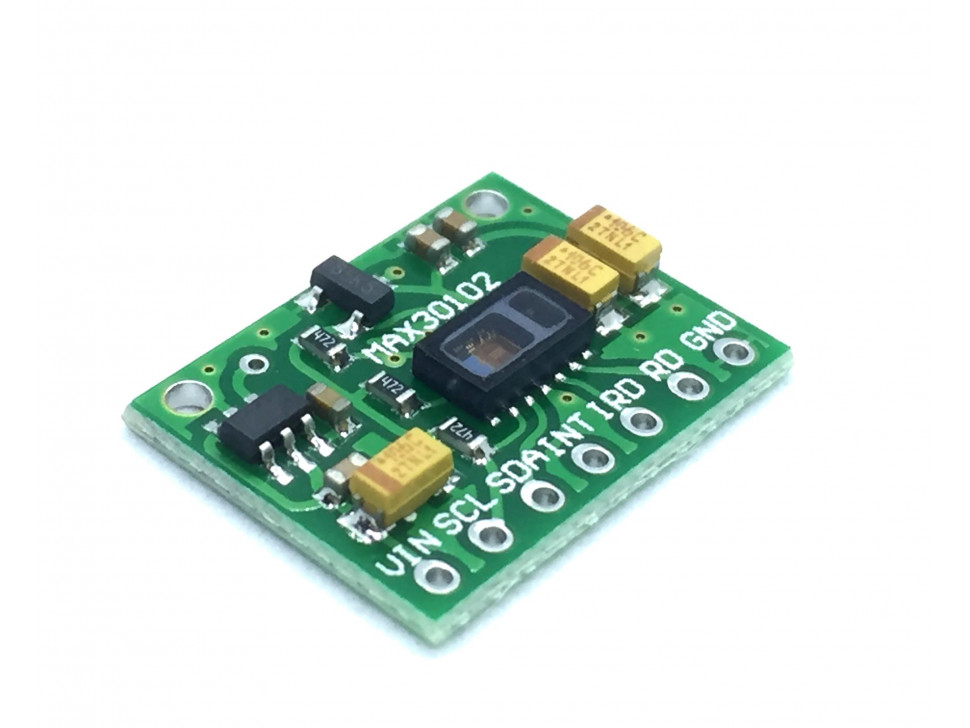

MAX30102 Heart Rate Oxygen Pulse Sensor view 2

MAX30102 Heart Rate Oxygen Pulse Sensor

Price:

RWF 8,300 RWF 4,000 -52%
The MAX30102 Heart Rate Oxygen Pulse Sensor is a compact, low-power optical sensor designed for measuring heart rate and blood oxygen levels (SpO2). It integrates a red and infrared LED with a photodetector to detect the absorption of light by blood vessels, providing accurate pulse oximetry readings. The sensor is widely used in health and fitness applications, wearable devices, and medical equipment. It communicates via I2C, making it easy to interface with microcontrollers like Arduino and Raspberry Pi. With its small size and low power consumption, the MAX30102 is ideal for continuous monitoring and health tracking in real-time.
In Stock - Ready to Ship
Quality Guaranteed
Fast Delivery
Expert Support
Easy Returns

Need help or have questions about this product?

Contact STS Support →

Product Description

The MAX30102 Heart Rate Oxygen Pulse Sensor offers high-precision measurements of both heart rate and blood oxygen saturation (SpO2) through its integrated optical sensors. With its combination of red and infrared LEDs, it emits light into the skin, while the photodetector measures the reflected light to determine the amount of oxygen in the blood. This sensor is highly suitable for wearable health devices, fitness trackers, and medical-grade equipment, providing reliable, real-time data.
Product features.

  • Use of high-quality materials, quality assurance

  • Exquisite appearance of the product

  • Apply to wearable devices for heart rate and blood oxygen collection detection, worn on the fingers, earlobes and wrists, etc.

  • Good performance

  • LED power supply up to voltage 3.3-5V


Product parameters.

  • Pin description

  • VIN: main power supply input, 1.8V-5V

  • 3-bit pad: select the pull-up level of the bus, depending on the pin master voltage, optional 1.8V terminal or 3.3V terminal (this terminal contains 3.3V and above)

  • SCL: connect to the 2C bus clock

  • SDA: connected to the 12C bus data

  • INT: MAX30102 chip interrupt pin

  • RD: MAX30102 chip RED LED ground terminal, generally not connected to

  • IRD: MAX30102 chip IR LED ground terminal, generally do not connect

  • GND: ground wire
