Overview

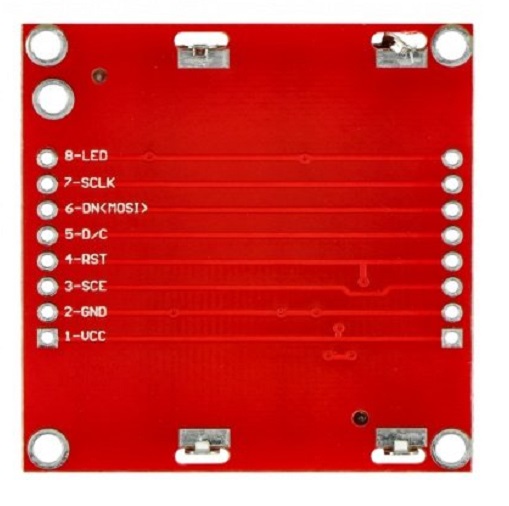

The Nokia 5110 LCD Module is a compact, low‑power graphic display built around the proven PCD8544 controller—the same chip used in the classic Nokia 3310 handset. Mounted on a ready‑to‑solder PCB, this 84 × 48 pixel monochrome screen provides crisp, high‑contrast output for a wide range of hobbyist and embedded projects.

Specifications

• Display Type: Monochrome graphic LCD


• Resolution: 84 × 48 pixels


• Controller: PCD8544


• Operating Voltage: 3.3 V – 5 V


• Interface: SPI (4‑wire)


• Backlight: White LED (optional)


• Dimensions: 48 mm × 36 mm × 3 mm (module)


• Temperature Range: -20 °C to +70 °C


• Power Consumption: < 2 mA (idle), ≈ 30 mA (full display)

Typical Applications

• Microcontroller projects (Arduino, NodeMCU, ESP8266/ESP32)


• Wearable devices and portable gadgets


• Sensor readouts (PIR motion detectors, weight sensors, temperature sensors)


• Robotics interfaces (servo status, navigation cues)


• DIY handheld gaming consoles


• Educational kits and prototyping boards


• IoT dashboards with minimal power budget
