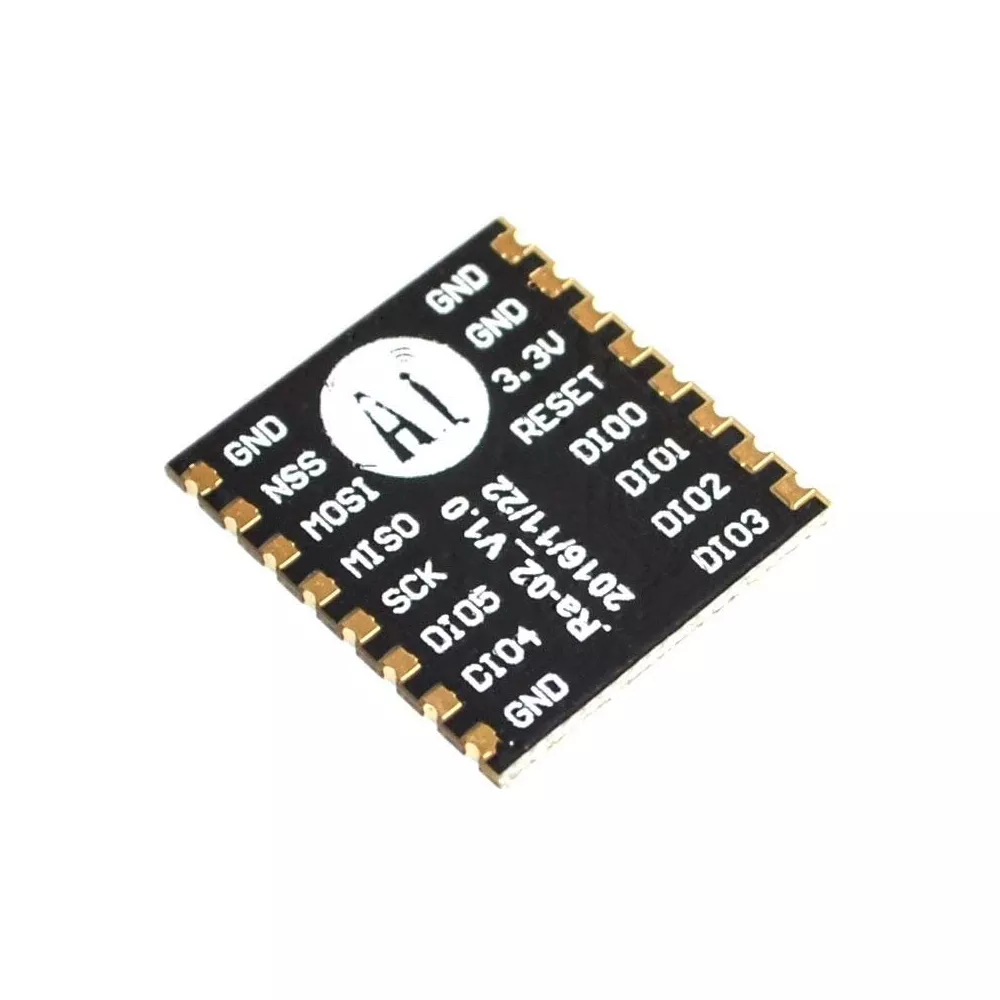

Ra-02 LoRa SX1278 433 MHz Wireless Transmission
RWF 15,000
Ra-02 is based on SX1278 wireless transparent transmission module (transceiver one), with IPEX socket it can connect external antenna.Using advanced LoRa spread spectrum technology, communication distance is10000 meters, super error correction, anti-interference ability, with the air wake-up function (ultra-low power consumption). It can be used in the enviroment with thousands of people,especially for meter reading, smart home, burglar alarm and other equipment.
Product Description
- Wireless standard 433MHz
- Frequency range: 420 ~ 450MHz
- Interface: SPI GPIO
- Voltage:1.8 ~ 3.7V, the typical value is 3.3V
- Current:
- Receiver:? 10.8mA (LnaBoost off, band 1)
- Transimit: ? 120mA (+ 20dBm)
- Sleep mode: 0.2?A
- Working temperature: -40 to + 85 � C
- Storage temperature: normal
- LoRa Spread Spectrum Modulation Technology
- +20dBm-100mW Constant RF power output when voltage changes
- High sensitivity: low to -148dBm
- Half-duplex SPI communication
- Programmable bit rates up to 300kbps
- Supports FSK, GFSK, MSK, GMSK, LoRa and OOK modulation modes
- 127dB RSSI dynamic range
- Automatic RF signal detection, CAD mode and ultra-high-speed AFC
- With CRC, up to 256 bytes of packet engine
- Small volume dual-row stamp-hole patch package
- With shielding shell
- Spring antenna (Ra-01) or IPEX external antenna (Ra-02)
