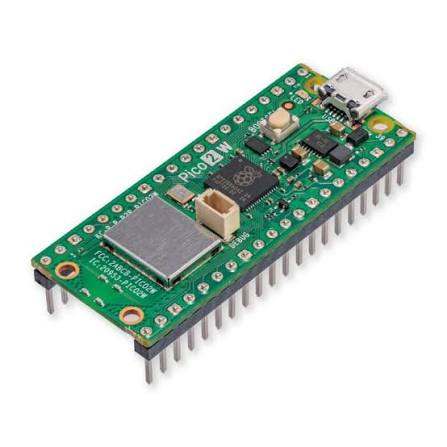

The Raspberry Pi Pico 2 W is a powerful wireless microcontroller board featuring the RP2350 dual-core processor, built-in Wi-Fi and Bluetooth, enhanced security, and improved performance. It is the next-generation wireless microcontroller board from Raspberry Pi, built around the high-performance RP2350 microcontroller. The Pico 2 W delivers significantly improved processing power, increased security, and enhanced flexibility compared to previous Pico models while maintaining the same compact footprint and pin compatibility.

The RP2350 features dual Arm Cortex-M33 processors running at up to 150MHz, combined with dual open-hardware Hazard3 RISC-V cores, allowing developers to select the architecture best suited to their application. The board also incorporates hardware security features including Arm TrustZone®, secure boot, and SHA-256 acceleration. With 520KB SRAM, 4MB onboard flash memory, and 26 multifunction GPIO pins, the Pico 2 W offers exceptional flexibility for both beginners and professional developers.

Key Features:

• Powered by Raspberry Pi RP2350 microcontroller


• Dual-core Arm Cortex-M33 processor running up to 150MHz


• Dual Hazard3 RISC-V cores


• Built-in 2.4GHz Wi-Fi (802.11n)


• Bluetooth 5.2 with Bluetooth Low Energy (BLE)


• 520KB on-chip SRAM


• 4MB onboard QSPI Flash memory


• 26 multifunction GPIO pins


• Hardware floating-point unit (FPU)


• Programmable I/O (PIO) for custom peripheral interfaces


• USB 1.1 device and host support


• Low-power operation


• Hardware security with TrustZone®, secure boot, and cryptographic acceleration

Specifications:

• Processor: Raspberry Pi RP2350


• CPU: Dual-core Arm Cortex-M33 @ up to 150MHz


• Additional CPU: Dual Hazard3 RISC-V cores


• Wireless Connectivity: 2.4GHz IEEE 802.11 b/g/n Wi-Fi


• Bluetooth 5.2 BLE


• SRAM: 520KB


• Flash Memory: 4MB QSPI


• GPIO Pins: 26 Multifunction GPIO


• Analog Inputs: 3 × 12-bit ADC


• PWM Channels: 16


• PIO State Machines: 12


• USB: USB 1.1 Device and Host


• Operating Voltage: 1.8V–5.5V


• Input Logic Level: 3.3V


• Dimensions: 51 × 21 mm


• Mounting Holes: 4

Applications:

• Internet of Things (IoT)


• Smart home devices


• Wireless sensors


• Industrial automation


• Robotics


• Embedded control applications


• Education


• Prototyping


• Commercial product development
