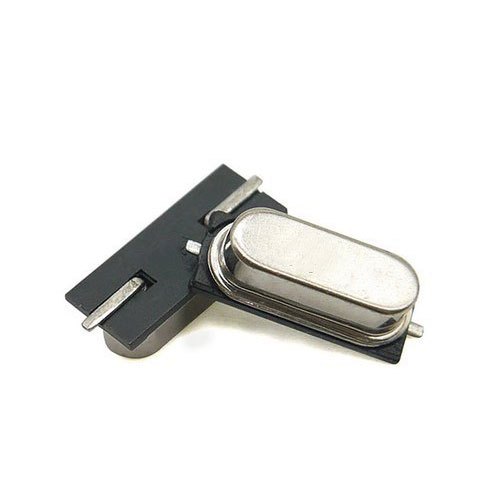

SMD Crystal 16 MHz?
RWF 500
Product Description
16 MHz Crystal Oscillator module is designed to handle off-chip crystals that have a frequency of 4�16 MHz. The crystal oscillator�s output is fed to the System PLL as the input reference. The oscillator design generates low frequency and phase
Specifications
Specifications
- Frequency Nom: 16MHz
- Crystal Case: SMD, 3.2mm x 2.5mm
- Frequency Stability + / -: 10ppm
- Load Capacitance: 9pF
- Frequency Tolerance + / -: 10ppm
- Product Range: 3225 Series
- Operating Temperature Min: -20�C
- Operating Temperature Max: 75�C
