  • Output Power: Generally delivers a total of 54W to 60W.



    •



      • Left/Right Channels: 15W + 15W up to 18W + 18W.


      • Subwoofer Channel: 18W to 30W.










  • Power Supply Requirement: Operates on dual AC voltage, typically 12V-0-12V AC or 15V-0-15V AC. It requires a step-down transformer supplying at least 3A to 4A of current for optimal bass delivery.


  • Pre-amplifier Chipset: Often integrates a JRC4558 or NE5532 operational amplifier to act as a low-pass filter for the subwoofer.


  • Frequency Response:



    •



      • Full-Range Satellites: 20Hz – 2kHz.


      • Subwoofer: 20Hz – 250Hz.













•

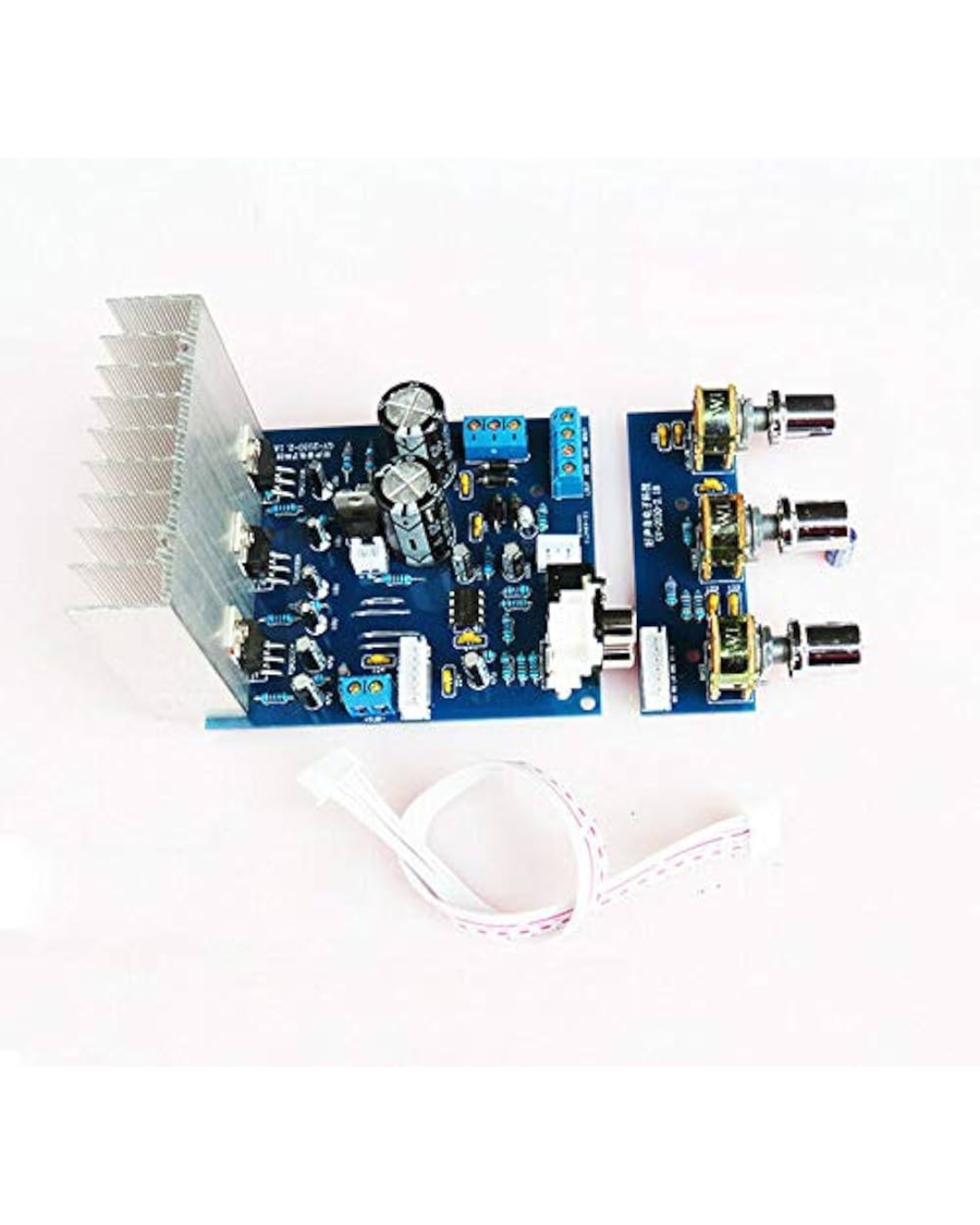

  • Heat Sink: An aluminum heat sink is vital on these boards to prevent the Class AB TDA2030 IC chips from overheating during prolonged playback.

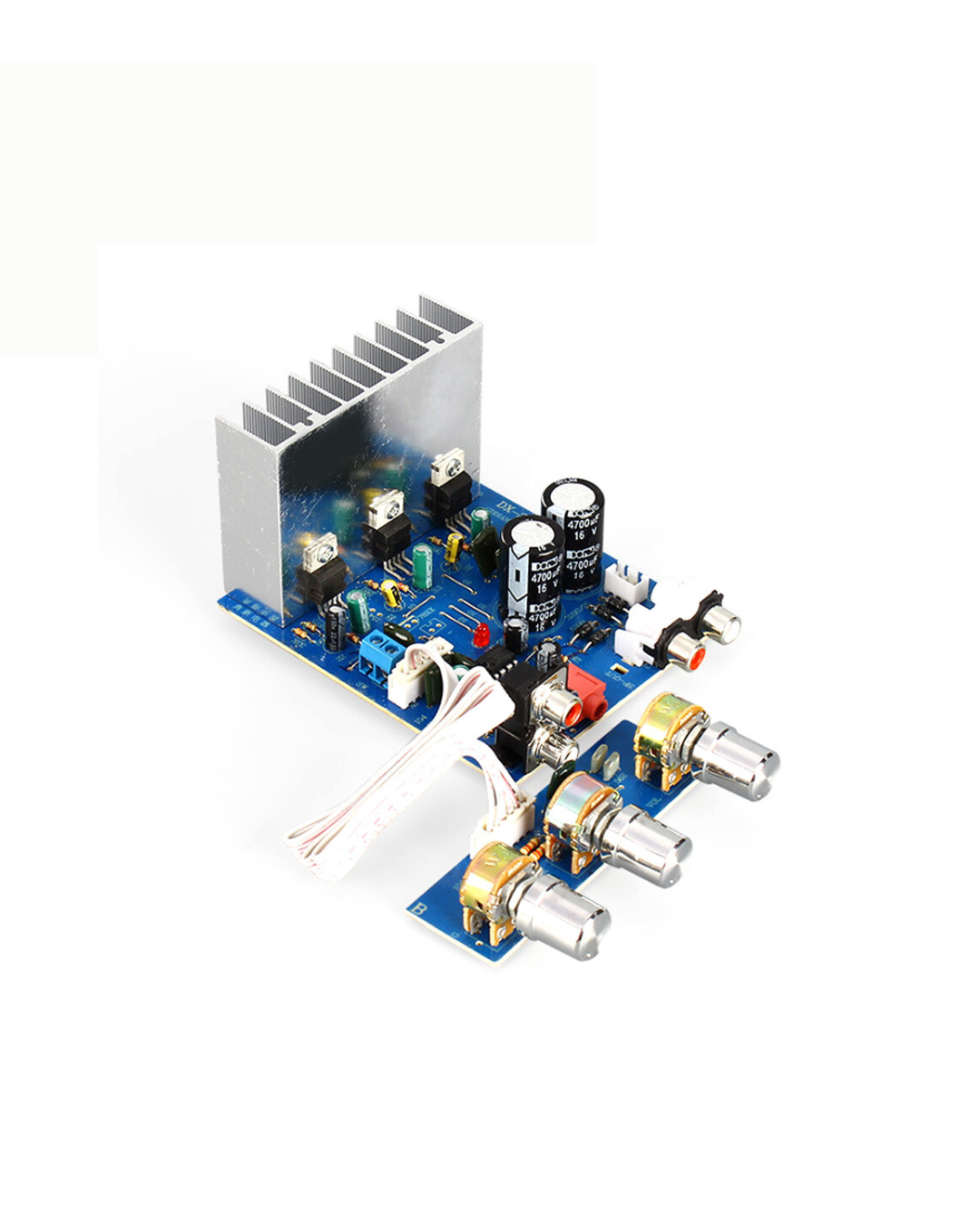

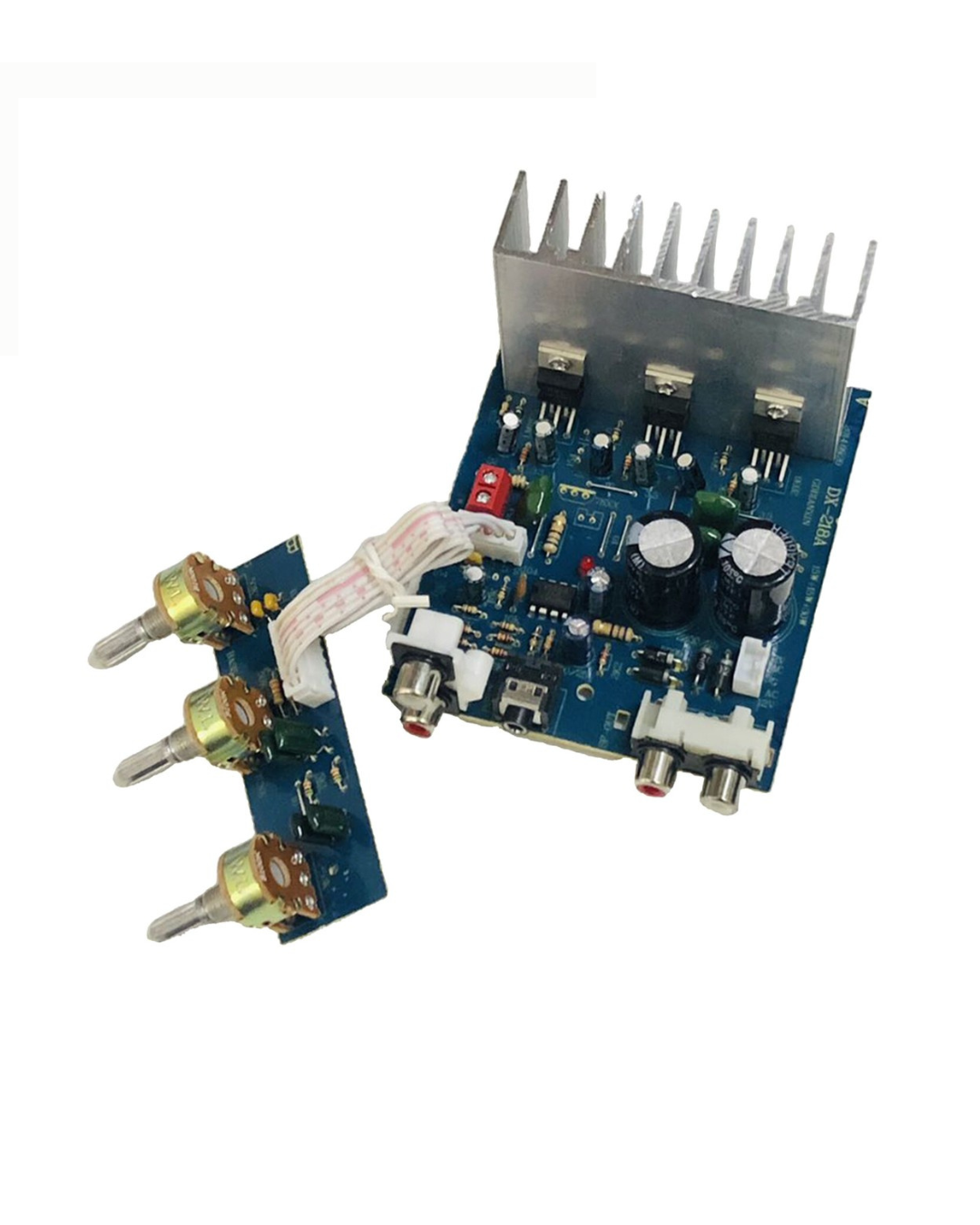

  • Potentiometers: Standard versions feature three on-board control knobs to adjust volume, treble, and subwoofer bass levels.


  • On-board Rectifier: Includes a diode bridge and filter capacitors so you can connect the AC transformer secondary wires directly to the board.





•



  • Subwoofer: Works best with a 4 to 6-inch speaker rated at 4 to 8 ohms (20W–40W peak).


  • Satellite Speakers: Works best with 2 to 4-inch full-range drivers rated at 4 to 8 ohms (10W–25W).





• Pros: Highly affordable, crisp treble handling, explicit bass separation, and simple layout wiring for DIY learning.


• Cons: Prone to heat generation; requires clean dual AC transformer power rather than standard DC power adapters.

Key Features of a TDA2030 2.1-channel Amplifier Board:

• Amplification: Usually delivers around 14-20 watts per channel into 4-8 ohms speakers for the left and right channels.


• Subwoofer Channel: Uses one or two TDA2030 ICs to drive a subwoofer, often configured in bridge mode for higher power output.


• Power Supply: Commonly operates with a dual voltage source, for example ±12V to ±18V.


• Inputs: Typically has stereo audio inputs for left and right channels.


• Control: Some boards feature bass, treble, and volume controls.
