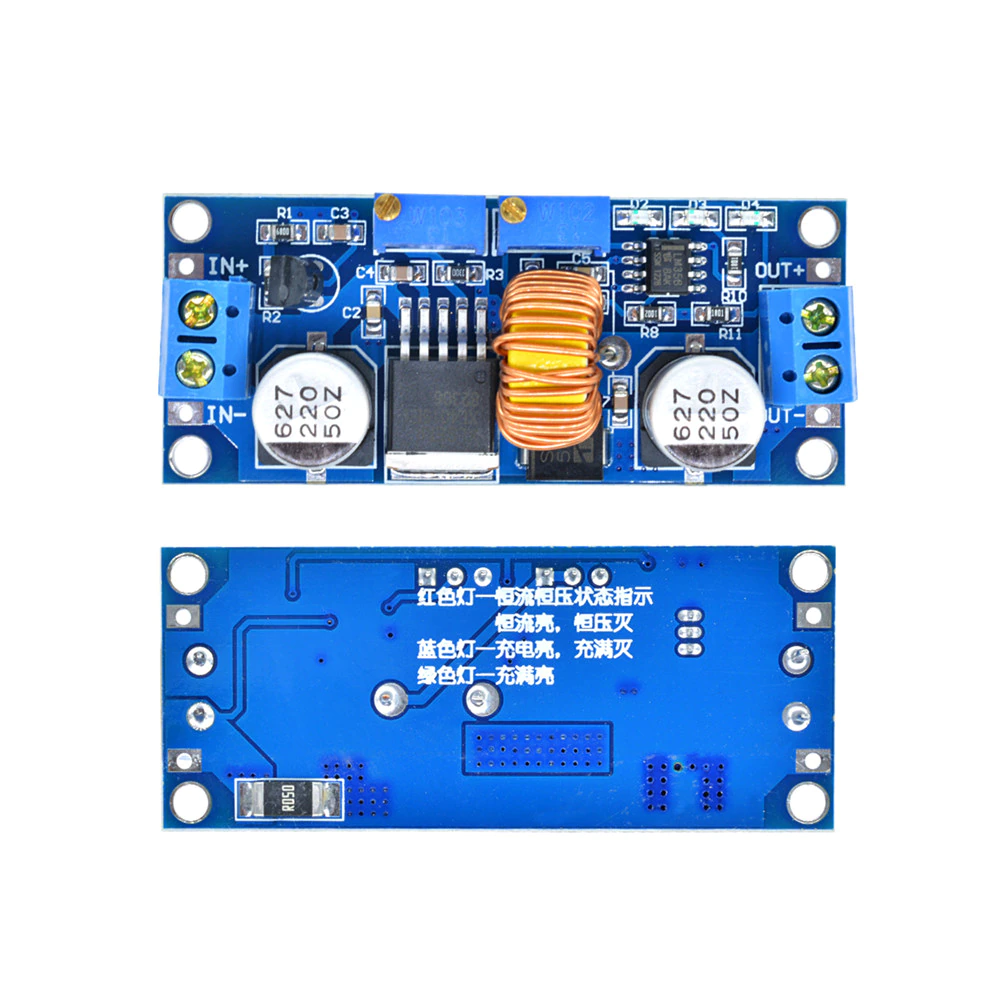

XL4005 DC-DC adjustable step-down 5A 75W power
RWF 5,000
The XL4005 is a 300KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation.
Product Description
Specifications
- Input voltage range:638VDC(Note:input voltage not exceeding 38V)
- Output voltage range:1.25-36VDC adjustable
- Output current: 0-5A
- Output power: 75W
- High efficiency up to 96%
- Input reverse polarity protection: None (if required, high current diode in series with the input)
- Built in thermal shutdown function
- Built in current limit function
- Built in output short protection function
- L x W x H =61.7*26.2*15mm
- Weight: 20g
