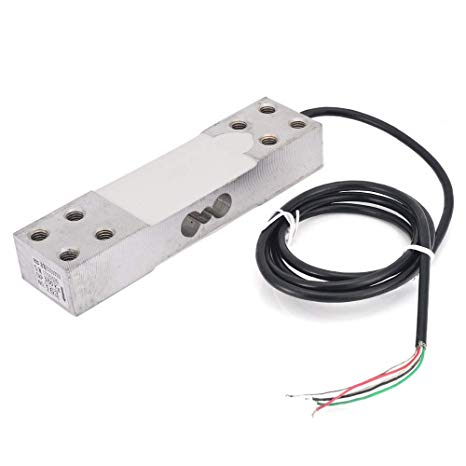

200 Kg Electronic Scale Sensor Digital Load Cell Weight Sensor
RWF 24,000.00
The 200kg Electronic Scale Sensor Digital Load Cell Weight Sensor is designed to measure weight and load with high accuracy. With a capacity of up to 200 kg, it provides precise weight measurement for various applications such as electronic scales, industrial load monitoring, and weighing systems. The sensor uses strain gauge technology to detect load changes and convert them into an electrical signal, which is then processed by a digital converter for display or further analysis. It is widely used in commercial and industrial scales, ensuring reliable, durable, and efficient weight measurement in a variety of settings.
Product Description
Sensitivity: 1.0 +/- 0.1mv/v
Non-linearity: 0.02%F.S
Hysteresis: 0.02%F.S
Repeatability: 0.02%F.S
Creep: 0.02%F.S/10min
Zero output: +/- 2%F.S
Input impedance: 405 +/- 10 ohm
Output impedance: 350 +/- 3 ohm
Insulation resistance: greater or equal to 5000M ohm(100VDC)
Excitation voltage: 5VDC~12VDC
Temperature compensation range: 10?~+40?
Operating temperature range: -20?~+60?
Influence of zero temperature: 0.03%F.S/10?
Sensitivity temperature influence: 0.02%F.S/10?
Safe overload range: 120%
Limit overload range: 150%
Protection level: IP65
Color: silver
Material: aluminium alloy
