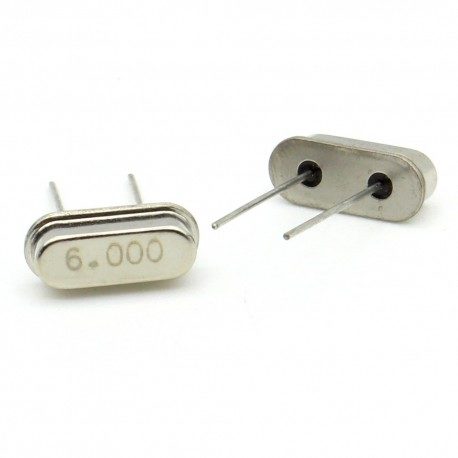

Crystal Oscillator 6MHz
RWF 400
Product Description
Crystal Oscillator is an Electronics Oscillator circuit which uses the mechanical resonance of a vibrating crystal of piezoelectric material to generate an electrical signal with an accurate frequency.
Specifications
Specifications
- Frequency: 6MHz
- 18pF of Load Capacitance
- Frequency Tolerance(?f/f) range is � 30ppm
- Frequency Temperature Stability range is �50ppm
- Resonance Resistance 40ohms (max)
- Oscillation mode: Fundamental mode
- Shunt Capacitance less than 7pF
- Drive Level less than 100�W
- Operating Temperature Range: -20 to + 70�C
- Operable Temperature Range: -25 to + 85�C
- Storage Temperature Range: -55 to + 125�C
- Insulation Resistance: 500 M ohms
