DDS Function Signal Generator DIY Kit Frequency Generator
RWF 45,000
Product Description
- Provided lots of electronic components for you to do it by yourself.
- Simple circuit with easily accessible and cheap components.
- Delicated high speed (HS) signal output up to 8MHz.
- DDS signal with variable amplitude and offset.
- DDS signals: sine, square, saw, rev saw ,triangle, ECG and noise.
- 2 * 16 LCD menu, intuitive 5 button keypad.
- Frequency adjusting steps: 1, 10, 1000, 10000MHz.
- Restoring last configuration after power up.
- Has two outputs-one for DDS signal and another for high speed aquare signal.
Specifications:
- Material: PCB + Electronic Components
- Power Supply: +5V / +12V / -12V
- Menu Displey: 2 * 16 LCD
- HS Signal Frequency: 1, 2, 4, 8MHz

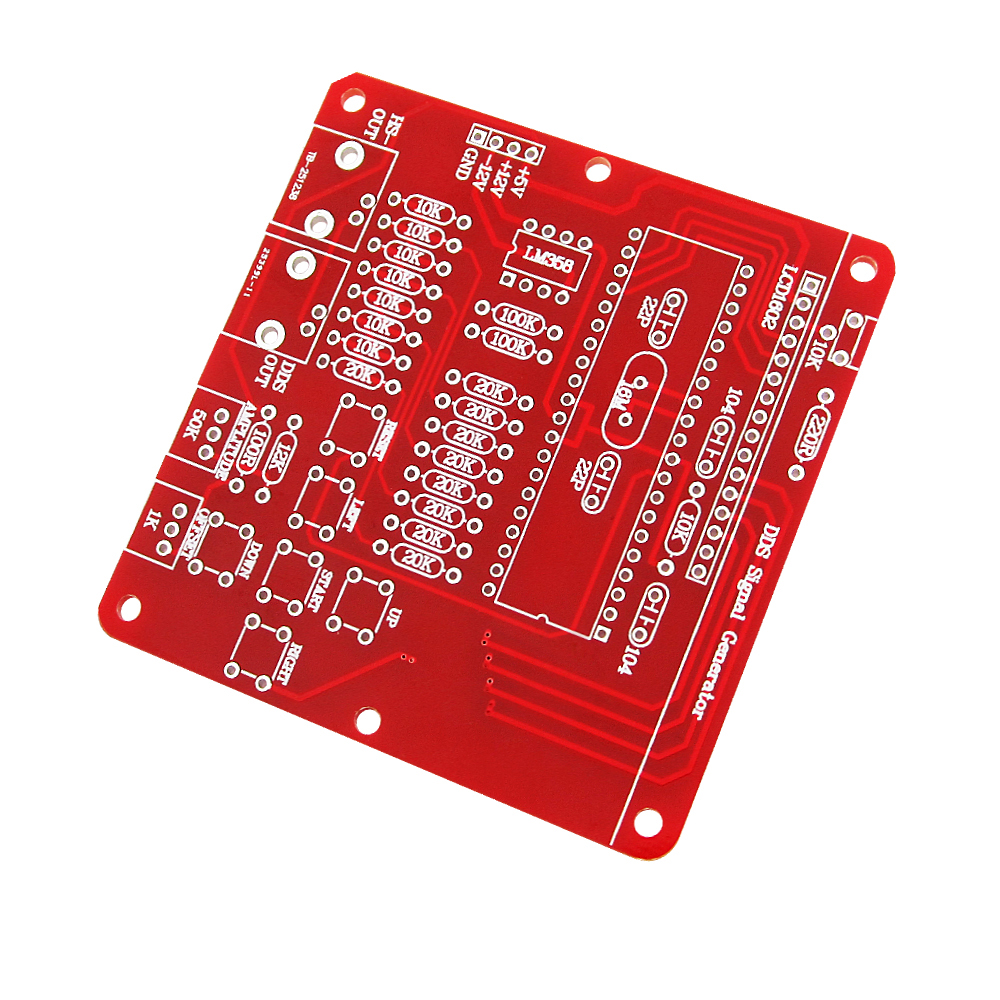

- Red Board Size: 8 * 8cm / 3.15 * 3.15in (L * W)
- Red Board Weight: 20g / 0.7oz
- Screen Size: 6.5 * 1.5cm / 2.6 * 0.6in (L * W)
- Screen Board Weight: 29g / 1.04oz
- Package Size: 15 * 11 * 2cm / 5.9 * 4.3 * 0.8in (L * W * H)
- Package Weight: 101g / 3.58oz
