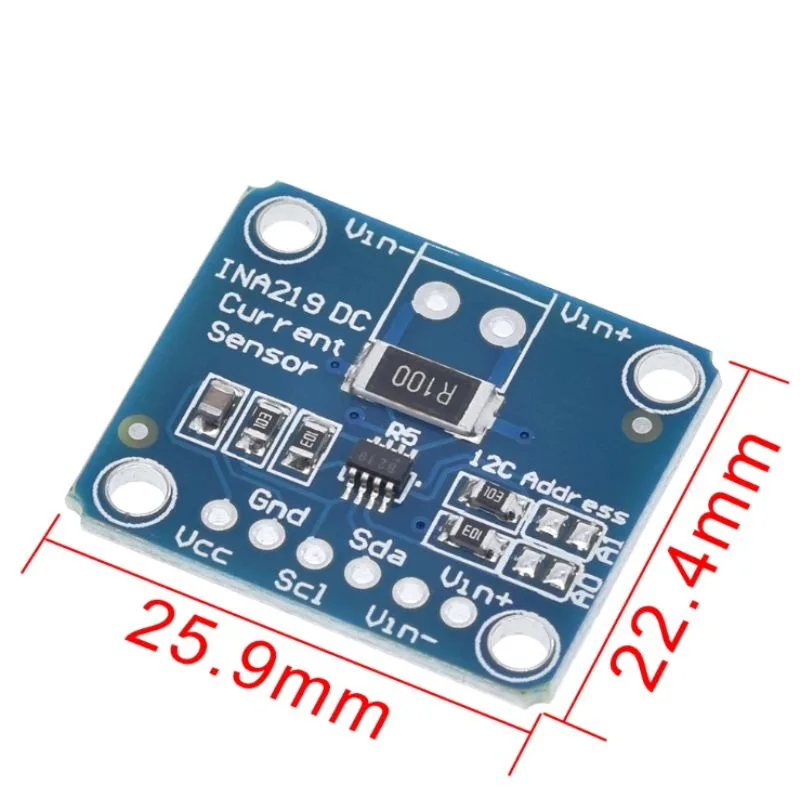

The INA219 I2C Interface High-Side DC Current Sensor Breakout Module is a precise and reliable power monitoring solution designed to measure current, voltage, and power in DC systems. Unlike low-side current sensors, the INA219 measures current on the high side of the power supply, meaning it does not disturb the ground path of the circuit. This module is widely used in Arduino, Raspberry Pi, ESP32, and other microcontroller projects, offering real-time power monitoring with high accuracy.

The INA219 module offers a range of features that make it an ideal choice for power monitoring applications. It measures bus voltage, shunt voltage, current, and power, and has a programmable gain and resolution. The module also supports multiple devices on one I2C bus, with configurable addresses, and has a high measurement accuracy with 12-bit ADC. The compact breakout board design makes it easy to integrate into projects, and the low power consumption makes it suitable for embedded systems.

Specifications:

• Sensor IC: INA219


• Measurement Type: High-side DC current sensing


• Bus Voltage Range: 0 – 26 V


• Shunt Voltage Range: ±320 mV


• Current Measurement Range: Depends on shunt resistor (commonly up to ±3.2 A)


• Power Measurement: Calculated internally (V × I)


• Interface: I2C (up to 400 kHz)


• ADC Resolution: 9-bit to 12-bit programmable


• I2C Address: 0x40 – 0x4F (configurable)


• Operating Voltage: 3.0 V – 5.5 V


• Shunt Resistor: Typically 0.1 Ω onboard


• Operating Temperature: –40 °C to +125 °C

Applications:

• Battery monitoring systems (Li-ion, LiPo, lead-acid)


• Solar power and renewable energy projects


• Power consumption monitoring in embedded systems


• Smart energy meters


• Robotics and motor control current tracking


• IoT and edge devices energy optimization


• Overcurrent detection and protection systems


• Education electronics and research projects

To ensure optimal performance and accuracy, it is essential to follow proper maintenance and handling procedures. This includes ensuring correct polarity connection, avoiding excessive current, and keeping the board clean and dry. Additionally, calibrating the sensor in software and using short, thick wires for high-current paths can help improve accuracy. By following these guidelines and taking advantage of the module's features, the INA219 I2C Interface High-Side DC Current Sensor Breakout Module can provide reliable and accurate power monitoring in a wide range of applications.
