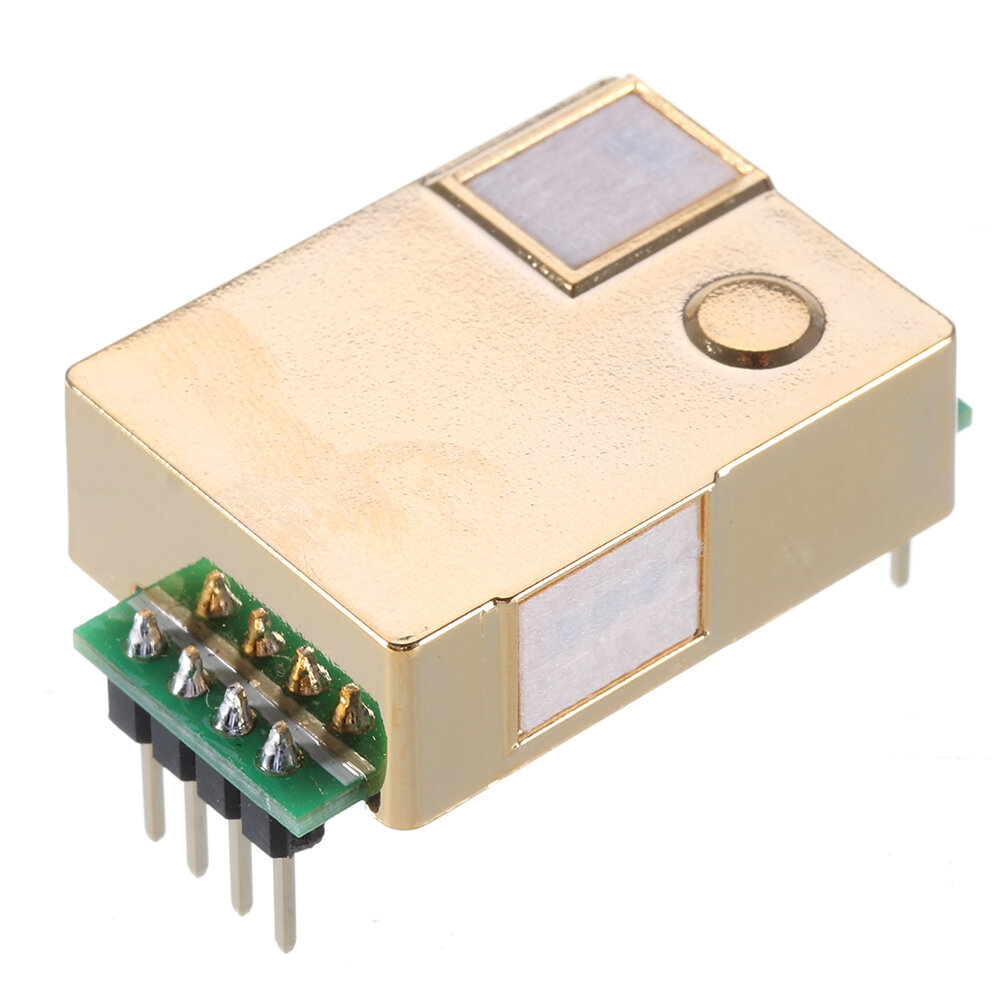

MH-Z19B NDIR CO2 sensor for indoor air quality monitoring
RWF 62,000
The MH-Z19B NDIR CO2 Sensor is an advanced sensor designed for monitoring indoor air quality by measuring carbon dioxide (CO2) concentrations. Using Non-Dispersive Infrared (NDIR) technology, it provides precise, reliable measurements of CO2 levels in real-time. The sensor is ideal for applications in air quality monitoring, HVAC systems, and smart home environments. It has a fast response time, low power consumption, and can communicate through UART or PWM interfaces, making it easy to integrate into various devices and systems. The MH-Z19B is an essential tool for ensuring healthy indoor air quality and promoting well-being in residential and commercial spaces.
Product Description
to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature compensation; and it has UART output and PWM output. It is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design and superior circuit design.
Specifications:
- Model No: MH-Z19B
- Detection Gas: CO2
- Working voltage: 4.5 ~ 5.5 V DC
- Average current: < 20mA (@5V power supply)
- Peak current: 150mA (@5V power supply)
- Interface level: 3.3 V (Compatible with 5V)
- Detection Range: 0~2000/5000/10000ppm(optional)
- Output signal: Serial Port (UART) (TTL level 3.3V), PWM
- Preheat time: 3 min
- Response Time: T90 < 120 s
- Working temperature: -10 ~ 50 ?
- Working humidity: 0 ~ 95% RH (No condensation)
- Weight: 5 g
- Chamber is gold plated, water-proof and anti-corrosion
- High sensitivity, low power consumption
- Good stability
- Temperature compensation, excellent linear output
- Multiple output modes: UART, PWM
- Long lifespan
- Anti-water vapor interference, anti-poisoning
Applications:
- HVAC refrigeration
- Air cleaner device
- Indoor air quality monitoring
- Smart home
- Ventilation system
- School
