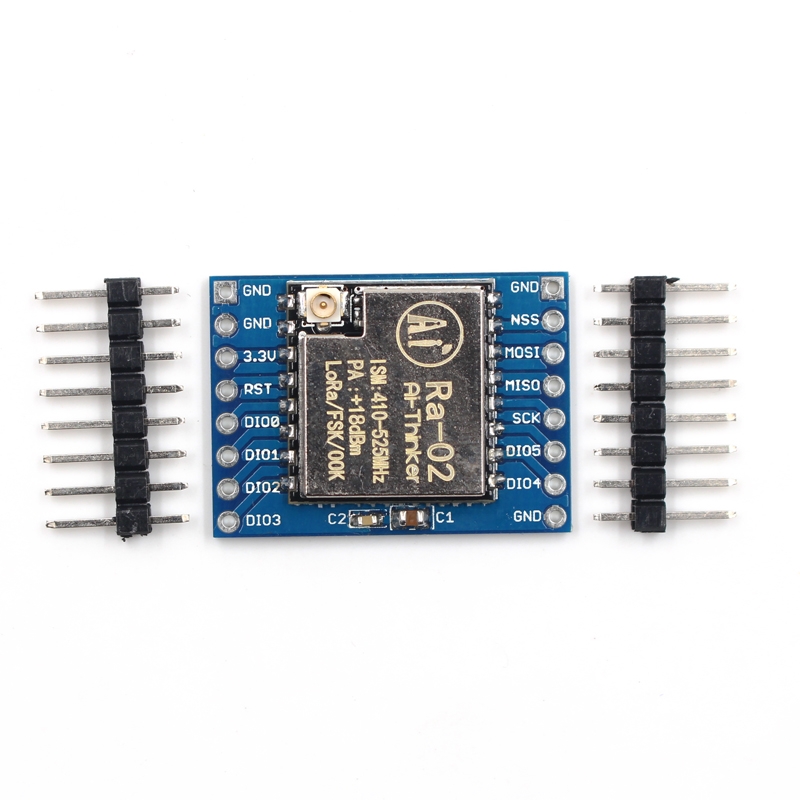

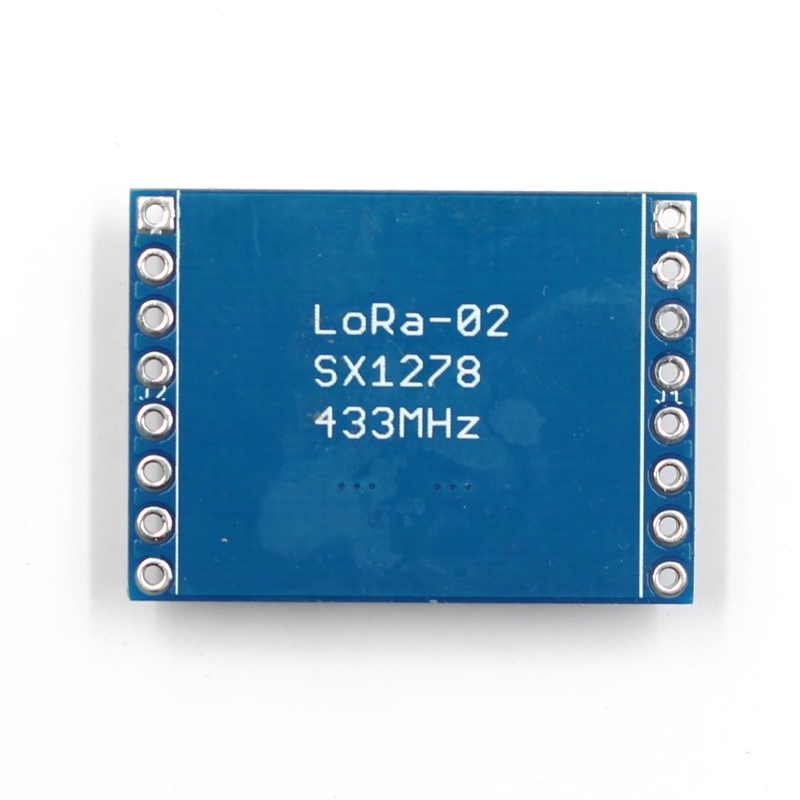

Ra-02 SX1278 LoRa Module 433M 10KM Ra-02 Wireless
RWF 13,500
Ra-02 is a wireless transmission module based on SEMTECH's SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.
Product Description
- Communication distance: 15KM
- Sensitivity: down to -148dBm
- Programmable bit rates: up to 300kbps
- RSSI dynamic range: 127dB
- Wireless frequency: 433MHz
- Working voltage: 1.8-3.7v
- Working temperature: -40-+80 ?
- LoRa Spread Spectrum modulation technology
- Constant RF power output at + 20dBm-100mW voltage change
- High sensitivity: down to -148dBm
- Half-duplex SPI communication
- Programmable bit rates up to 300kbps
- Supports FSK, GFSK, MSK, GMSK, LoRa and OOK modulation modes
- 127dB RSSI dynamic range
- Automatic RF signal detection, CAD mode and very high speed AFC
- Packet engine with CRC up to 256 bytes
- Small footprint dual-row stamp-hole patch package
- Shielded housing
- Spring Antenna
