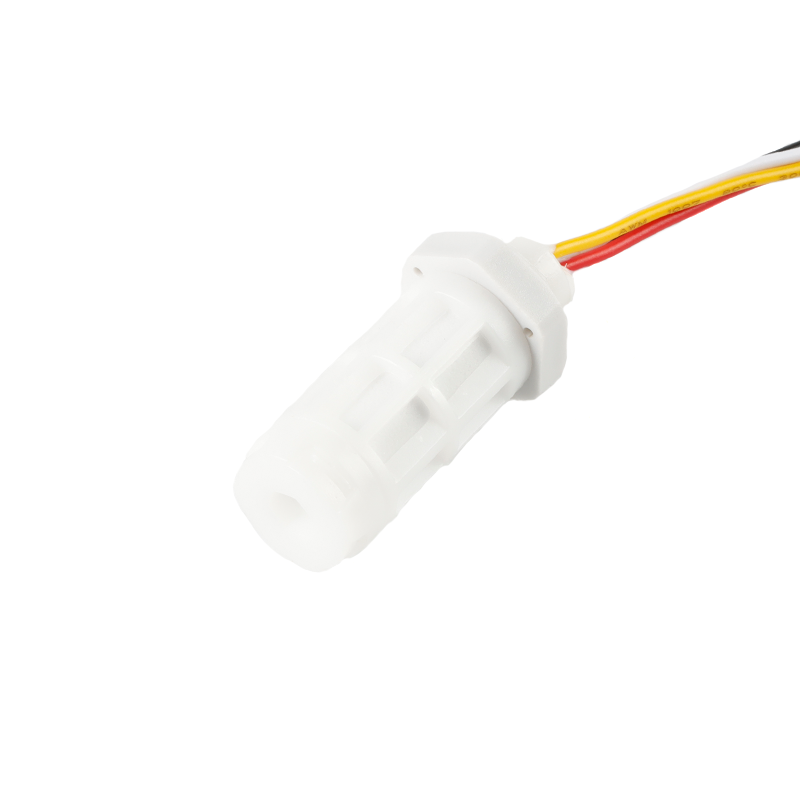

This sensor is perfect for applications such as environmental monitoring, weather stations, and smart home systems, where accurate temperature and humidity data are essential. It is also suitable for industrial use, helping to control or monitor conditions in clean rooms or warehouses. Additionally, the SHT30 is widely used in IoT projects where remote monitoring of environmental conditions is required. The module is small, lightweight, and comes with a HY2.0-4P connector cable, making it simple to integrate into various systems. Its combination of accuracy, ease of integration, and low power consumption makes the SHT30 an excellent choice for a wide range of applications. SHT30 digital temperature and humidity sensor, the whole is made of epoxy water-proof treatment to prevent condensation the sensor is short-circuited and damaged. Sensor PCB The board is encapsulated in a protective sleeve of a PE cylinder, and it is led by a 30cm 4PIN 24 electronic wire Out, the interface is HY2.0-4P

Specification

• Product model: IOT SHT30


• Working voltage: 2.15-5.5V


• Output signal: IIC digital signal


• Humidity measurement range: 0...100%RH


• Temperature measurement range: -40-125�C


• Accuracy: soil 2%RH+0.2�C


• IIC address: 0X44


• Product shell material: PE sintered.


• Interface: HY2.0-4P (2.0 with lock)


• Cord length: about 28cm
