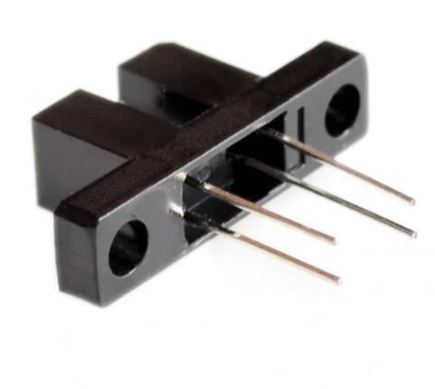

TCST2103 Optical Sensor Module
RWF 2,000
TCST2103 is transmissive sensors that include an infrared emitter and phototransistor, located face-to-face on the optical axes in a leaded package which blocks visible light. These part numbers include options for aperture width
Product Description
Specifications
- Package type: leaded
- Detector type: phototransistor
- Dimensions (L x W x H in mm): 24.5 x 6.3 x 10.8
- Gap (in mm): 3.1
- Typical output current under test: IC = 4 mA (TCST2103)
- Typical output current under test: IC = 2 mA (TCST2202)
- Typical output current under test: IC = 0.5 mA (TCST2300)
- Daylight blocking filter
- Emitter wavelength: 950 nm
- Lead (Pb)-free soldering released
- Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC APPLICATIONS
- Optical switch
- Photo interrupter
- Counter
- Encoder
