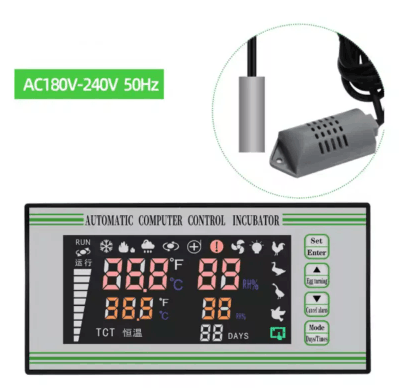

The XM-18S Egg Incubator Controller is a microcomputer-based temperature and humidity controller designed for automatic egg incubators. It integrates temperature control, humidity control, egg turning control, alarm system, and fan control — all in one compact unit. This device is perfect for those who want to ensure the optimal conditions for their eggs to hatch.

The XM-18S has a range of features that make it an ideal choice for incubation. The temperature display range is from 0 to 40.5 °C, with an accuracy of ±0.1 °C, while the humidity display range is from 0 to 99% RH, with a control precision of ±3% RH. The device also has multiple outputs, including primary heater, auxiliary heater, exhaust/fan, humidifier, motor left/right, and alarm.

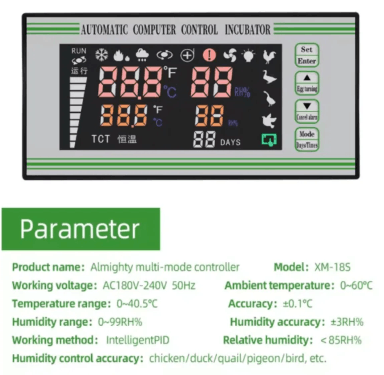

Here are the key specifications of the XM-18S:

• Temperature Display Range: 0 to 40.5 °C


• Temperature Accuracy: ±0.1 °C


• Humidity Display Range: 0 to 99% RH


• Humidity Control Precision: ±3% RH


• Outputs: 6-7 outputs, including primary heater, auxiliary heater, exhaust/fan, humidifier, motor left/right, and alarm

The XM-18S has a range of applications, including:

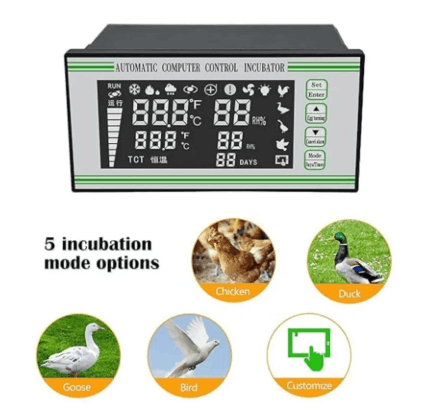

• Chicken Incubation: The XM-18S can be used to incubate chicken eggs, with a temperature setting of 37.5 °C and a humidity setting of 50-55% RH


• Duck/Goose Incubation: The XM-18S can also be used to incubate duck and goose eggs, with a temperature setting of 37.5 °C and a humidity setting of 55-65% RH


• Egg Turning: The XM-18S has an automatic egg turning function, which can be set to turn the eggs at intervals of 0-999 minutes

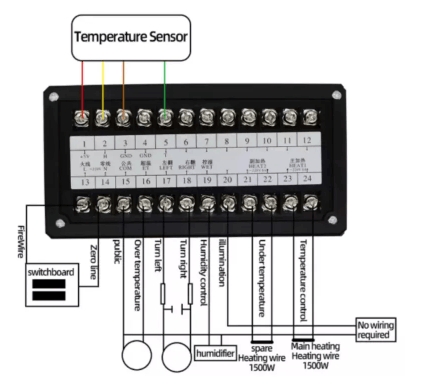

For more information on how to use the XM-18S, including troubleshooting tips and wiring diagrams, please refer to the user manual and videos available on our website.
