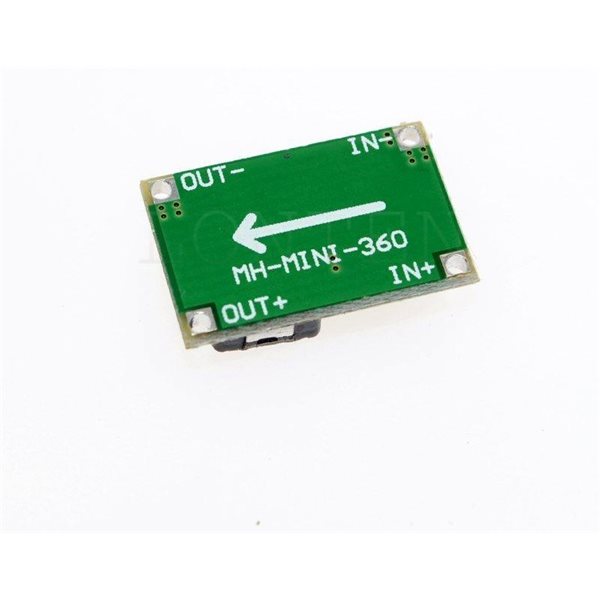

DC-DC Buck Converter Step Down Module 4.75V-23V to 1V-17V
RWF 2,000
Buck Converter Step down Module is a Dc to Dc converter which step down voltage from its input to output.
Product Description
Buck Converter Step down Module is a Dc-to-Dc converter which step down voltage from its input to output.
Specifications
Applications
Package include.
1x Buck Converter Step down Module
Specifications
- Model Name: Mini-360 (ultra small size DC-DC synchronous rectifier buck module)
- Module Properties: non-isolated buck
- Rectification: synchronous rectification
- Input voltage: 4.75V-23V
- Output voltage: 1.0V-17V
- Output Current: lowering the value of 3A, long 1.8A
- Conversion efficiency: 96% (maximum)
- Switching Frequency: 340KHz
- Output ripple: 30mV (no-load)
- Load regulation: � 0.5%
- Voltage regulation: � 2.5%
- Working temperature: -40 Celsius to +85 Celsius
Applications
- Simple high efficiency step down (buck) regulator
- On card switching regulator
- Positive to negative converter
Package include.
1x Buck Converter Step down Module
